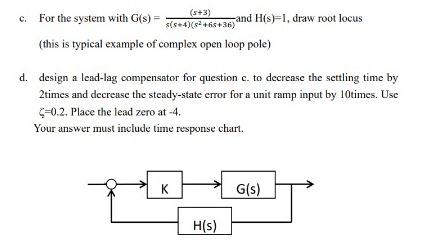

c. For the system with G(s)=s(s+4)(s2+6s+36)(s+3)​ and H(s)=1, draw root locus (this is typical example of complex open

[answerhappygod]

C For The System With G S S S 4 S2 6s 36 S 3 And H S 1 Draw Root Locus This Is Typical Example Of Complex Open 1 (16.33 KiB) Viewed 38 times

c. For the system with G(s)=s(s+4)(s2+6s+36)(s+3)​ and H(s)=1, draw root locus (this is typical example of complex open loop pole) d. design a lead-lag compensator for question c. to decrense the settling time by 2 times and decrease the steady-state crror for a unit ramp input by 10 times. Use ζ=0.2. Place the lead zero at −4. Your answer must include time response chart.
