mechanical engineering : 3D printing. please do a research about 3D printing not less than 1000 words.

[answerhappygod]

mechanical engineering : 3D printing.please do a research about 3D printing not less than 1000 words.

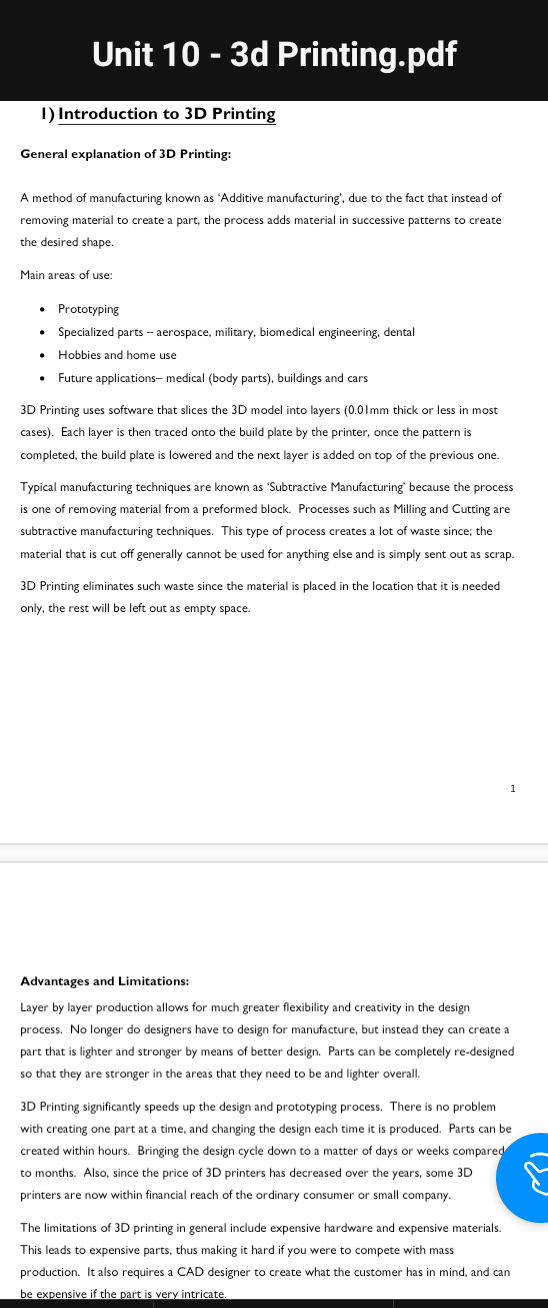

Mechanical Engineering 3d Printing Please Do A Research About 3d Printing Not Less Than 1000 Words 1 (127.85 KiB) Viewed 37 times

Mechanical Engineering 3d Printing Please Do A Research About 3d Printing Not Less Than 1000 Words 2 (158.7 KiB) Viewed 37 times

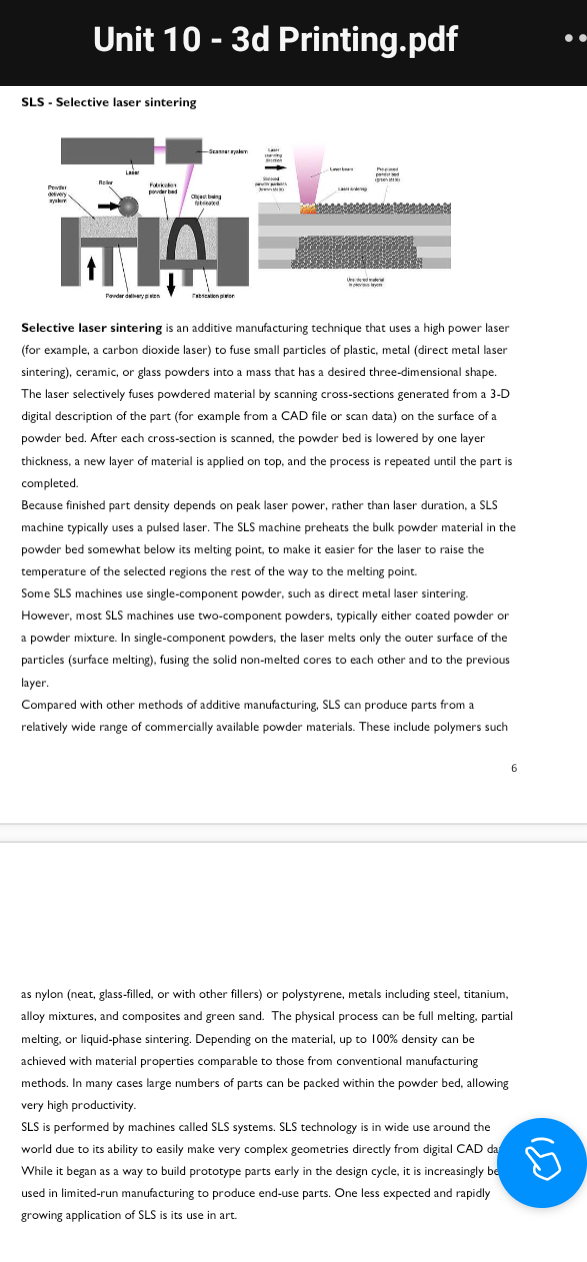

Mechanical Engineering 3d Printing Please Do A Research About 3d Printing Not Less Than 1000 Words 3 (178.24 KiB) Viewed 37 times

I) Introduction to 3D Printing General explanation of 3D Printing: A method of manufacturing known as 'Additive manufacturing', due to the fact that instead of removing material to create a part, the process adds material in successive patterns to create the desired shape. Main areas of use: - Prototyping - Specialized parts - aerospace, military, biomedical engineering, dental - Hobbies and home use - Future applications- medical (body parts), buildings and cars 3D Printing uses software that slices the 3D model into layers (0.01 mm thick or less in most cases). Each layer is then traced onto the build plate by the printer, once the pattern is completed, the build plate is lowered and the next layer is added on top of the previous one. Typical manufacturing techniques are known as 'Subtractive Manufacturing' because the process is one of removing material from a preformed block. Processes such as Milling and Cutting are subtractive manufacturing techniques. This type of process creates a lot of waste since; the material that is cut off generally cannot be used for anything else and is simply sent out as scrap. 3D Printing eliminates such waste since the material is placed in the location that it is needed only, the rest will be left out as empty space. 1 Advantages and Limitations: Layer by layer production allows for much greater flexibility and creativity in the design process. No longer do designers have to design for manufacture, but instead they can create a part that is lighter and stronger by means of better design. Parts can be completely re-designed so that they are stronger in the areas that they need to be and lighter overall. 3D Printing significantly speeds up the design and prototyping process. There is no problem with creating one part at a time, and changing the design each time it is produced. Parts can be created within hours. Bringing the design cycle down to a matter of days or weeks compared to months. Also, since the price of 3D printers has decreased over the years, some 3D printers are now within financial reach of the ordinary consumer or small company. The limitations of 3D printing in general include expensive hardware and expensive materials. This leads to expensive parts, thus making it hard if you were to compete with mass production. It also requires a CAD designer to create what the customer has in mind, and can be expensive if the part is very intricate.
Unit 10 - 3d Printing.pdf Types of 3D Printing: FDM - Fused Deposition Modeling Fused Deposition Modeling, is an additive manufacturing technology commonly used for modeling, prototyping, and production applications. FDM works on an "additive" principle by laying down material in layers. A plastic filament or metal wire is unwound from a coil and supplies material to an extrusion nozzle which can turn the flow on and off. The nozzle is heated to melt the material and can be moved in both horizontal and vertical directions by a numerically controlled mechanism, directly controlled by a computer-aided manufacturing (CAM) software package. The model or part is produced by extruding small beads of thermoplastic material to form layers as the material hardens immediately after extrusion from the nozzle. Stepper motors or servo motors are typically employed to move the extrusion head. FDM, a prominent form of rapid prototyping, is used for prototyping and rapid manufacturing. Rapid prototyping facilitates iterative testing, and for very short runs, rapid manufacturing can be a relatively inexpensive alternative. Advantages: Cheaper since uses plastic, more expensive models use a different (water soluble) material to remove supports completely. Even cheap 3D printers have enough resolution for many applications. Disadvantages: Supports leave marks that require removing and sanding. Warping, limited testing allowed due to Thermo plastic material. 3 SLA - Stereolithography Stereolithography is an additive manufacturing process which employs a vat of liquid ultraviolet curable photopolymer "resin" and an ultraviolet laser to build parts" layers one at a time. For each layer, the laser beam traces a cross-section of the part pattern on the surface of the liquid resin. Exposure to the ultraviolet laser light cures and solidifies the pattern traced on the resin and joins it to the layer below.
Unit 10 - 3d Printing.pdf SLS - Selective laser sintering Selective laser sintering is an additive manufacturing technique that uses a high power laser (for example, a carbon dioxide laser) to fuse small particles of plastic, metal (direct metal laser sintering), ceramic, or glass powders into a mass that has a desired three-dimensional shape. The laser selectively fuses powdered material by scanning cross-sections generated from a 3-D digital description of the part (for example from a CAD file or scan data) on the surface of a powder bed. After each cross-section is scanned, the powder bed is lowered by one layer thickness, a new layer of material is applied on top, and the process is repeated until the part is completed. Because finished part density depends on peak laser power, rather than laser duration, a SLS machine typically uses a pulsed laser. The SLS machine preheats the bulk powder material in the powder bed somewhat below its melting point, to make it easier for the laser to raise the temperature of the selected regions the rest of the way to the melting point. Some SLS machines use single-component powder, such as direct metal laser sintering. However, most SLS machines use two-component powders, typically either coated powder or a powder mixture. In single-component powders, the laser melts only the outer surface of the particles (surface melting), fusing the solid non-melted cores to each other and to the previous layer. Compared with other methods of additive manufacturing, SLS can produce parts from a relatively wide range of commercially available powder materials. These include polymers such 6 as nylon (neat, glass-filled, or with other fillers) or polystyrene, metals including steel, titanium, alloy mixtures, and composites and green sand. The physical process can be full melting, partial melting, or liquid-phase sintering. Depending on the material, up to 100\% density can be achieved with material properties comparable to those from conventional manufacturing methods. In many cases large numbers of parts can be packed within the powder bed, allowing very high productivity. SLS is performed by machines called SLS systems. SLS technology is in wide use around the world due to its ability to easily make very complex geometries directly from digital CAD da While it began as a way to build prototype parts early in the design cycle, it is increasingly be used in limited-run manufacturing to produce end-use parts. One less expected and rapidly growing application of SLS is its use in art.
