c) A 24 V DC supply is connected in series across two resistors, R1= 70kΩ and R2=55kΩ. A voltmeter on a 20 V range, A
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
c) A 24 V DC supply is connected in series across two resistors, R1= 70kΩ and R2=55kΩ. A voltmeter on a 20 V range, A

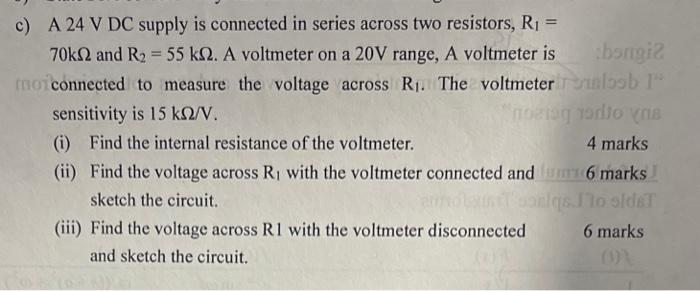

c) A 24 V DC supply is connected in series across two resistors, R1= 70kΩ and R2=55kΩ. A voltmeter on a 20 V range, A voltmeter is connected to measure the voltage across R1. The voltmeter sensitivity is 15kΩ/V. (i) Find the internal resistance of the voltmeter. 4 marks (ii) Find the voltage across R1 with the voltmeter connected and 6 marks sketch the circuit. (iii) Find the voltage across R1 with the voltmeter disconnected 6 marks and sketch the circuit.
