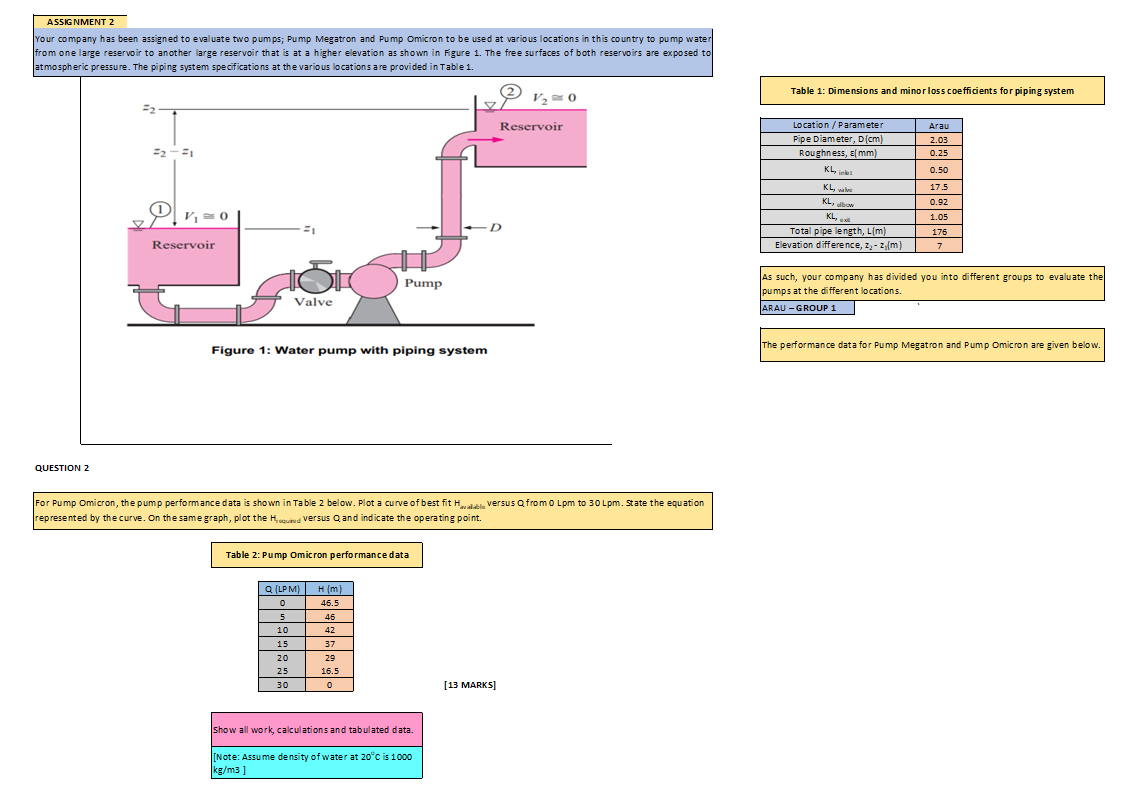

Your company has been assigned to evaluate two pumps; Pump Megatron and Pump Omicron to be used at various locations in this country to pump water from one large reservoir to another large reservoir that is at a higher elevation as shown in Figure 1. The free surfaces of both reservoirs are exposed to atmospheric pressure. The piping system specifications at the various locations are provided in Table 1. Table 1: Dimensions and minor loss coefficients for piping system \begin{tabular}{l} As such, your company has divided you into different groups to evaluate the \\ pumpsat the different locations. \\ \cline { 2 } \\ The performance data for Pump Megatron and Pump Omicron are given below. \end{tabular} QUESTION 2 Figure 1: Water pump with piping system For Pump Omicron, the pump performance data is shown in Ta ble 2 below. Plot a curve of best fit H Hmalule versus Q from 0 Lpm to 30L pm. State the equation represented by the curve. On the same graph, plot the Hurum versus Qand indicate the opera ting point. [13 MARK5]
