The solid pin is made of a material with shear modulus of G=10GPa, with a failure shear stress of τfail =100MPa. Determ
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The solid pin is made of a material with shear modulus of G=10GPa, with a failure shear stress of τfail =100MPa. Determ

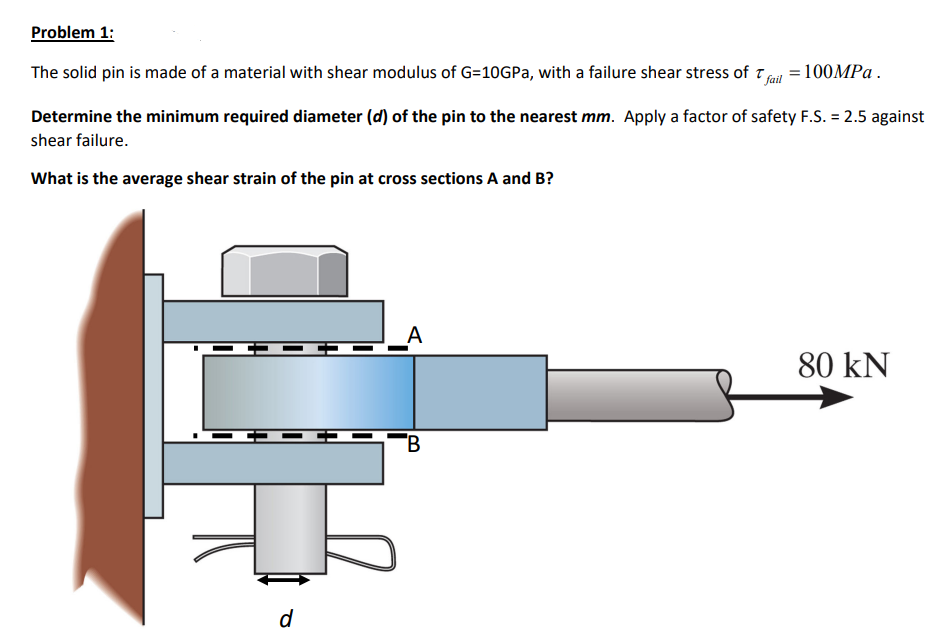

The solid pin is made of a material with shear modulus of G=10GPa, with a failure shear stress of τfail =100MPa. Determine the minimum required diameter (d) of the pin to the nearest mm. Apply a factor of safety F.S. =2.5 against shear failure. What is the average shear strain of the pin at cross sections A and B ?
