TION 5 A single-stage, double-acting, compressor must deliver 16 m3 of air every minute. The compressor receives the air

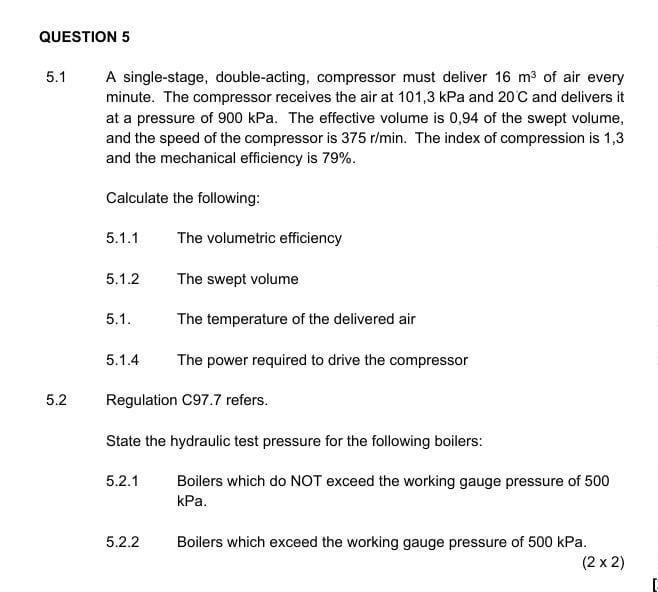

TION 5 A single-stage, double-acting, compressor must deliver 16 m3 of air every minute. The compressor receives the air at 101,3kPa and 20∘C and delivers it at a pressure of 900kPa. The effective volume is 0,94 of the swept volume, and the speed of the compressor is 375r/min. The index of compression is 1,3 and the mechanical efficiency is 79%. Calculate the following: 5.1.1 The volumetric efficiency 5.1.2 The swept volume 5.1. The temperature of the delivered air 5.1.4 The power required to drive the compressor Regulation C97.7 refers. State the hydraulic test pressure for the following boilers: 5.2.1 Boilers which do NOT exceed the working gauge pressure of 500 kPa. 5.2.2 Boilers which exceed the working gauge pressure of 500kPa. (2×2)
