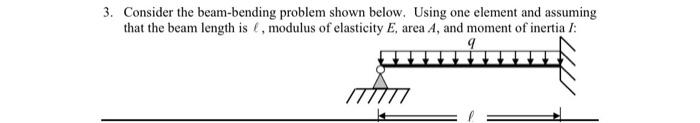

Consider the beam-bending problem shown below. Using one element and assuming that the beam length is ℓ, modulus of elasticity E, area A, and moment of inertia I :
Compute components of the element stiffness matrix using shape functions.
assuming that: ℓ=1 m,A=4×4 cm2 (square), P=4kN,q=2kN/mE=200GPa,A1=Aj=2A,A2=Ai=A,E1=2E,E2=E.
