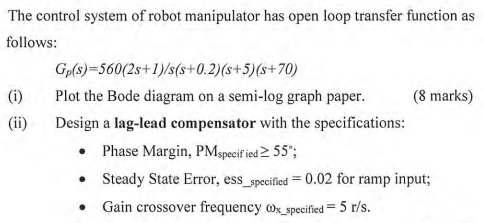

The control system of robot manipulator has open loop transfer function as follows: Gp(s)=560(2s+1)/s(s+0.2)(s+5)(s+70)
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The control system of robot manipulator has open loop transfer function as follows: Gp(s)=560(2s+1)/s(s+0.2)(s+5)(s+70)
The control system of robot manipulator has open loop transfer function as follows: Gp(s)=560(2s+1)/s(s+0.2)(s+5)(s+70) (i) Plot the Bode diagram on a semi-log graph paper. (8 marks) (ii) Design a lag-lead compensator with the specifications: - Phase Margin, PMspecif ied ≥55∘; - Steady State Error, ess_specified =0.02 for ramp input; - Gain crossover frequency ωx−specified =5r/s.
