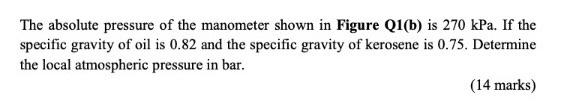

The absolute pressure of the manometer shown in Figure Q1(b) is 270kPa. If the specific gravity of oil is 0.82 and the specific gravity of kerosene is 0.75. Determine the local atmospheric pressure in bar. (14 marks)

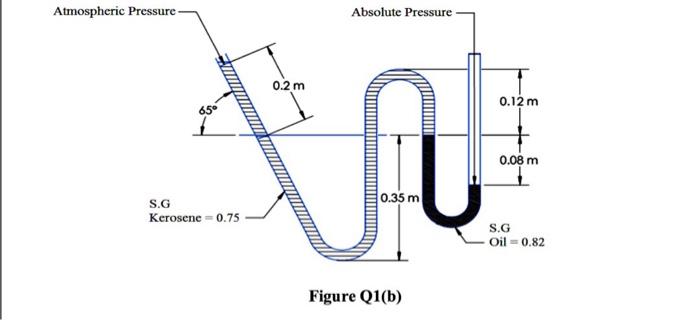

Figure Q1(b)
