For Francis turbine, find the vane angle at outlet and runner speed if head is 30 m, runner inlet and outlet diameters a

Post by answerhappygod »

For Francis Turbine Find The Vane Angle At Outlet And Runner Speed If Head Is 30 M Runner Inlet And Outlet Diameters A 1

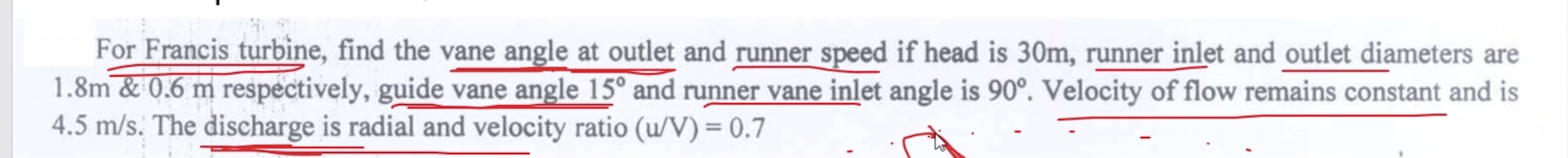

For Francis Turbine Find The Vane Angle At Outlet And Runner Speed If Head Is 30 M Runner Inlet And Outlet Diameters A 1 (412.44 KiB) Viewed 39 times
For Francis turbine, find the vane angle at outlet and runner speed if head is 30 m, runner inlet and outlet diameters are 1.8 m&.6 m respectively, guide vane angle 15∘​ and runner vane inlet angle is 90∘. Velocity of flow remains constant and is 4.5 m/s. The discharge is radial and velocity ratio (u/V)=0.7
