Y=D(BDˉ+BD)+CB (b) Build the truth table, the K-Map diagram based on the result obtained in Q5(a) (c) Construct the logi

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Y=D(BDˉ+BD)+CB (b) Build the truth table, the K-Map diagram based on the result obtained in Q5(a) (c) Construct the logi

Post by answerhappygod »

1
1 (58.5 KiB) Viewed 42 times
dear answers expert please answer asap and well

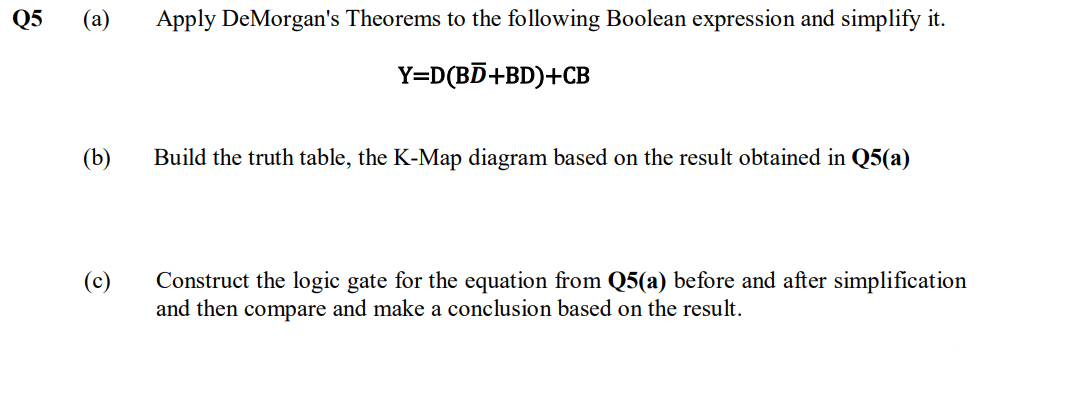

Y=D(BDˉ+BD)+CB (b) Build the truth table, the K-Map diagram based on the result obtained in Q5(a) (c) Construct the logic gate for the equation from Q5(a) before and after simplification and then compare and make a conclusion based on the result.
