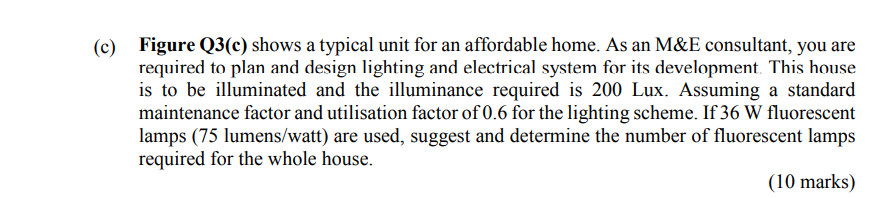

Figure Q3(c) shows a typical unit for an affordable home. As an M\&E consultant, you are required to plan and design lighting and electrical system for its development. This house is to be illuminated and the illuminance required is 200 Lux. Assuming a standard maintenance factor and utilisation factor of 0.6 for the lighting scheme. If 36 W fluorescent lamps ( 75 lumens/watt) are used, suggest and determine the number of fluorescent lamps required for the whole house. (10 marks)
UNIT FLOOR PLAN (AREA : 850sqft,79.00sq meter) Figure Q3(c)
