Q2. A JFET amplifier circuit is shown in figure 2. The high frequency model of the JFET is shown in figure 3. Assume tha

[answerhappygod]

Q2 A Jfet Amplifier Circuit Is Shown In Figure 2 The High Frequency Model Of The Jfet Is Shown In Figure 3 Assume Tha 1 (87.24 KiB) Viewed 34 times

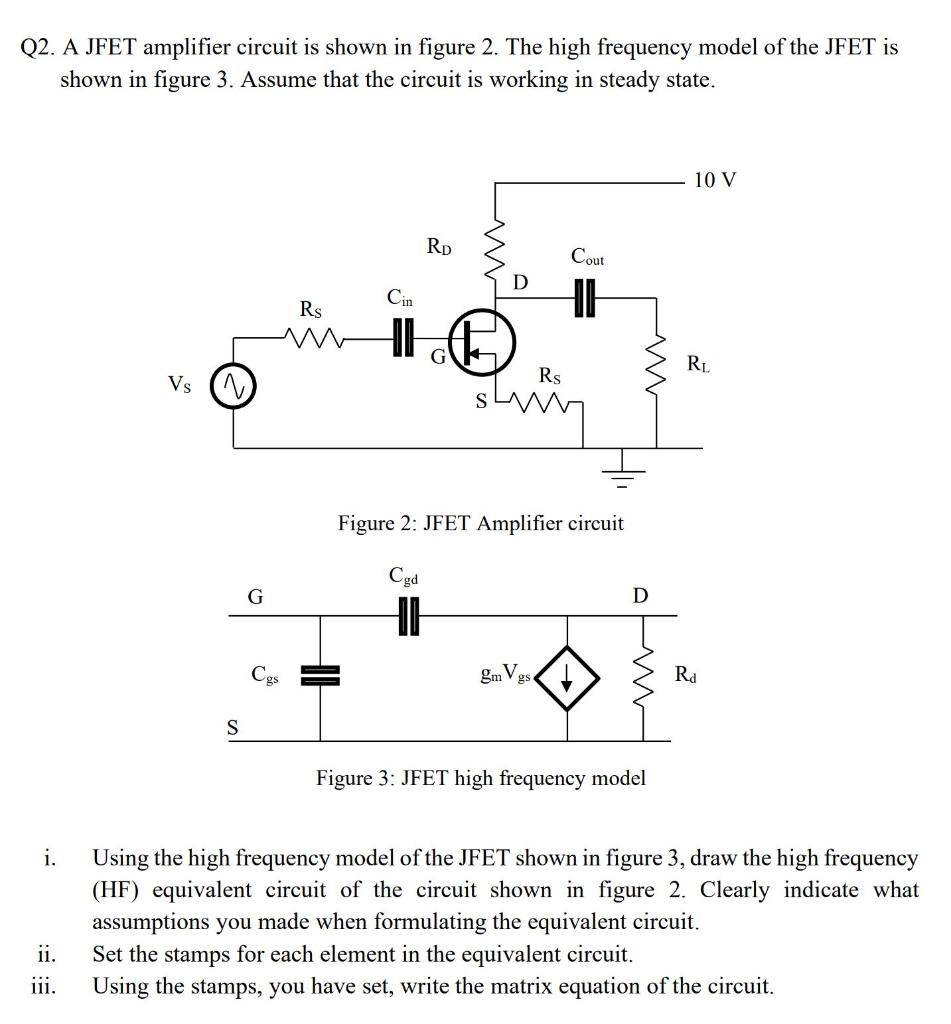

Q2. A JFET amplifier circuit is shown in figure 2. The high frequency model of the JFET is shown in figure 3. Assume that the circuit is working in steady state. Figure 2: JFET Amplifier circuit Figure 3: JFET high frequency model i. Using the high frequency model of the JFET shown in figure 3, draw the high frequency (HF) equivalent circuit of the circuit shown in figure 2. Clearly indicate what assumptions you made when formulating the equivalent circuit. ii. Set the stamps for each element in the equivalent circuit. iii. Using the stamps, you have set, write the matrix equation of the circuit.
