a) The basic d'Arsonval meter movement can be converted to a DC voltmeter by connecting a multiplier resistor in series

[answerhappygod]

A The Basic D Arsonval Meter Movement Can Be Converted To A Dc Voltmeter By Connecting A Multiplier Resistor In Series 1 (46.9 KiB) Viewed 39 times

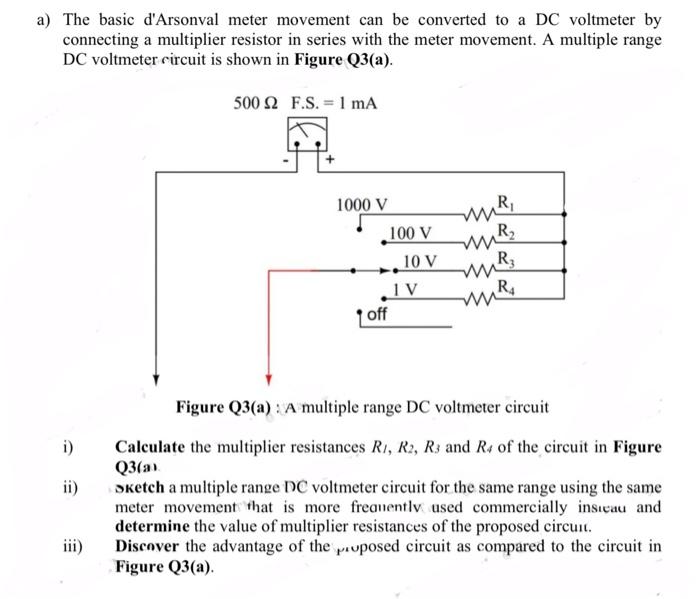

a) The basic d'Arsonval meter movement can be converted to a DC voltmeter by connecting a multiplier resistor in series with the meter movement. A multiple range DC voltmeter circuit is shown in Figure Q3(a). Figure Q3(a): A multiple range DC voltmeter circuit i) Calculate the multiplier resistances R1​,R2​,R3​ and R4​ of the circuit in Figure Q3(a). ii) SKetch a multiple range DC voltmeter circuit for the same range using the same meter movement that is more freanentlv used commercially insıcau and determine the value of multiplier resistances of the proposed circuit. iii) Discover the advantage of the pruposed circuit as compared to the circuit in Figure Q3(a).
