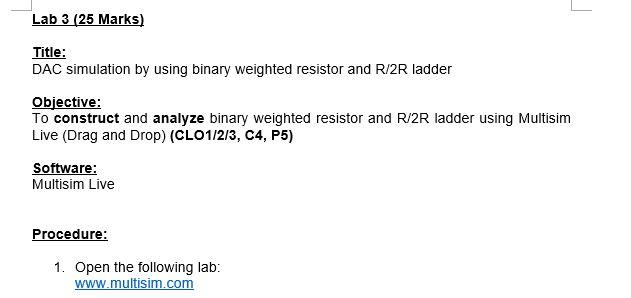

Lab 3 (25 Marks) Title: DAC simulation by using binary weighted resistor and R/2R ladder Objective: To construct and analyze binary weighted resistor and R/2R ladder using Multisim Live (Drag and Drop) (CLO1/2/3, C4, P5) Software: Multisim Live Procedure: 1. Open the following lab: www.multisim.com

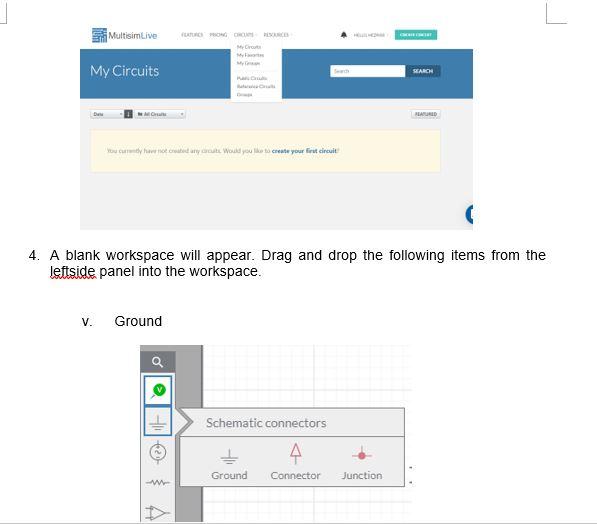

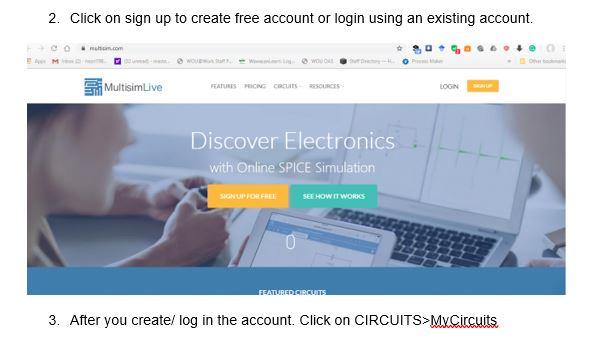

2. Click on sign up to create free account or login using an existing account. 필 MultisimLive Fatuers recace cazars- assciscrs UOGA 3. After you create/ Iog in the account. Click on CIRCUITS>MyCircuits
4. A blank workspace will appear. Drag and drop the following items from the leftside panel into the workspace. v. Ground

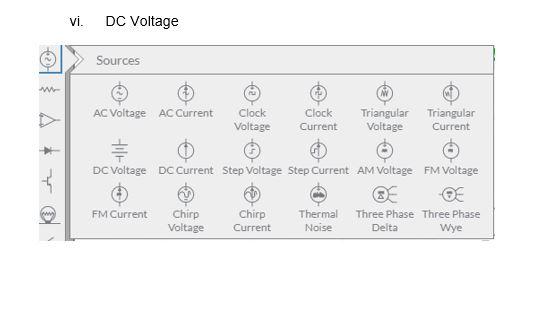

vi. DC Voltage

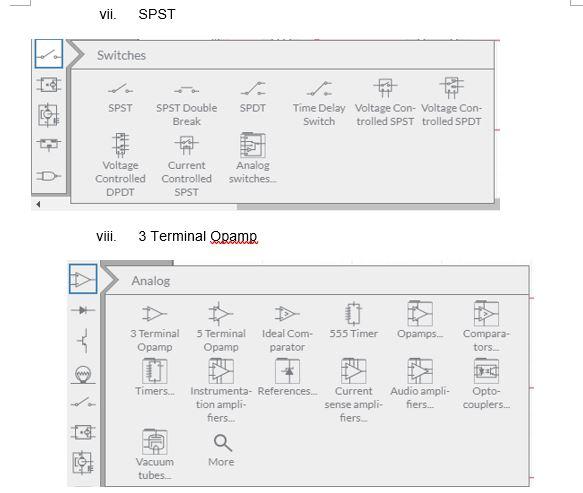

vii. SPST viii. 3 Terminal Qpamp

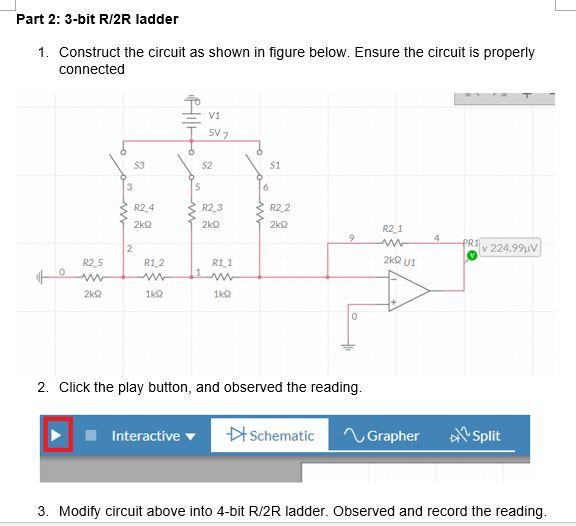

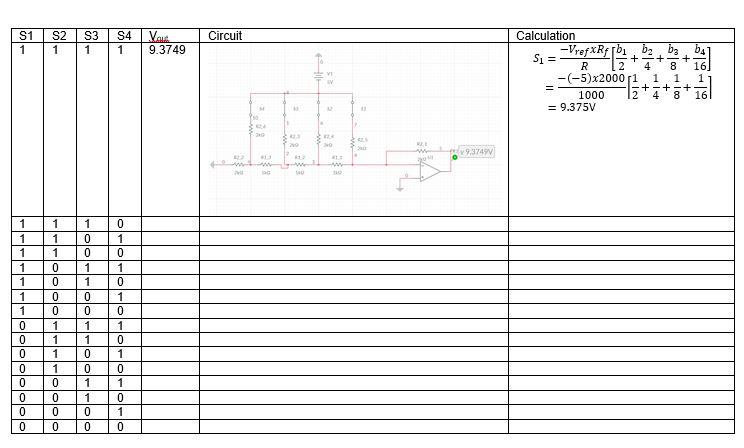

1. Construct the circuit as shown in figure below. Ensure the circuit is properly connected 2. Click the play button, and observed the reading. Interactive 3. Modify circuit above into 4-bit R/2R ladder. Observed and record the reading.

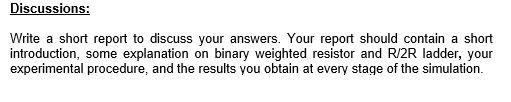

Discussions: Write a short report to discuss your answers. Your report should contain a short introduction, some explanation on binary weighted resistor and R/2R ladder, your experimental procedure, and the results you obtain at every stage of the simulation.
