Determine the voltage for the circuit external to RL in Figure 1, using Thevenin’s theorem and show a logical approach t

Post by answerhappygod »

Determine The Voltage For The Circuit External To Rl In Figure 1 Using Thevenin S Theorem And Show A Logical Approach T 1
Determine The Voltage For The Circuit External To Rl In Figure 1 Using Thevenin S Theorem And Show A Logical Approach T 1 (56.78 KiB) Viewed 24 times

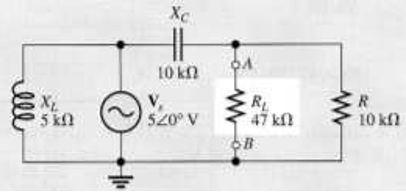

Determine the voltage for the circuit external to RLin Figure 1, using Thevenin’s theorem and show a logicalapproach to provide accurate solutions of the impedance for thecircuit external to RL, using Thevenin’s theorem.
Note: XC must be used, and the voltage andimpedance must be in polar form. "Do NOT use the KCL method for thesteps"
