A NAND gate has been added as a feedback path for the shift register shown below. The outputs of the circuit are q[3]−q[

Post by answerhappygod »

A Nand Gate Has Been Added As A Feedback Path For The Shift Register Shown Below The Outputs Of The Circuit Are Q 3 Q 1
A Nand Gate Has Been Added As A Feedback Path For The Shift Register Shown Below The Outputs Of The Circuit Are Q 3 Q 1 (49.3 KiB) Viewed 14 times

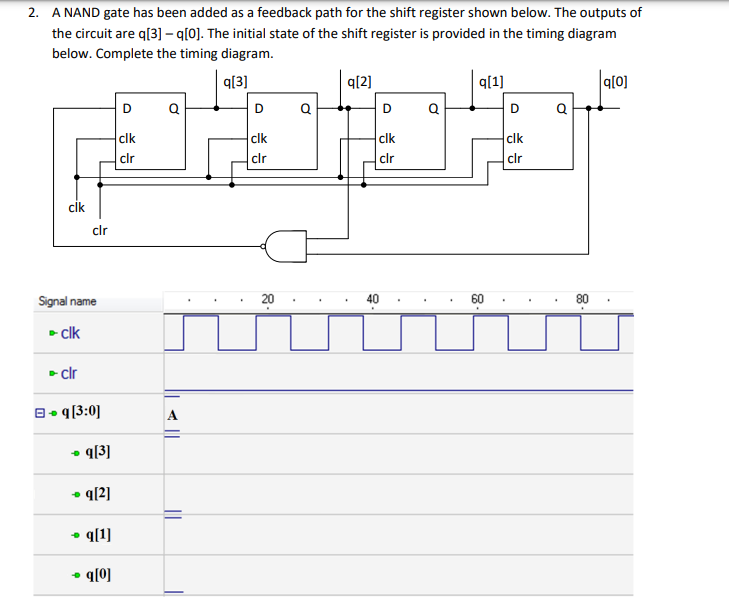

A NAND gate has been added as a feedback path for the shift register shown below. The outputs of the circuit are q[3]−q[0]. The initial state of the shift register is provided in the timing diagram below. Complete the timing diagram.
