UESTION 2 For the unity feedback system shown in Figure Q5, answer the questions. (a) To improvement the transient respo

Post by answerhappygod »

Uestion 2 For The Unity Feedback System Shown In Figure Q5 Answer The Questions A To Improvement The Transient Respo 1
Uestion 2 For The Unity Feedback System Shown In Figure Q5 Answer The Questions A To Improvement The Transient Respo 1 (49.72 KiB) Viewed 22 times

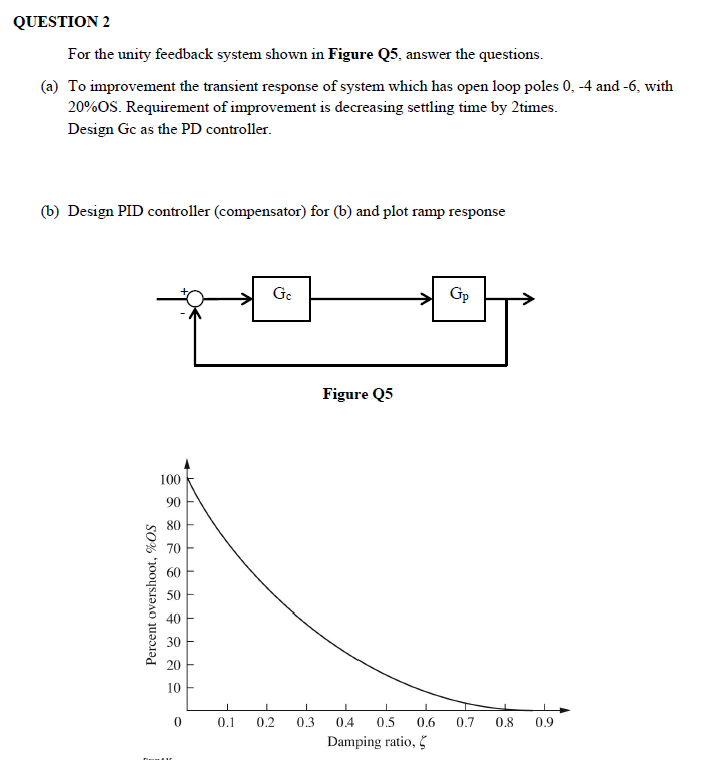

UESTION 2 For the unity feedback system shown in Figure Q5, answer the questions. (a) To improvement the transient response of system which has open loop poles 0,−4 and −6, with 20%OS. Requirement of improvement is decreasing settling time by 2 times. Design Gc as the PD controller. (b) Design PID controller (compensator) for (b) and plot ramp response
