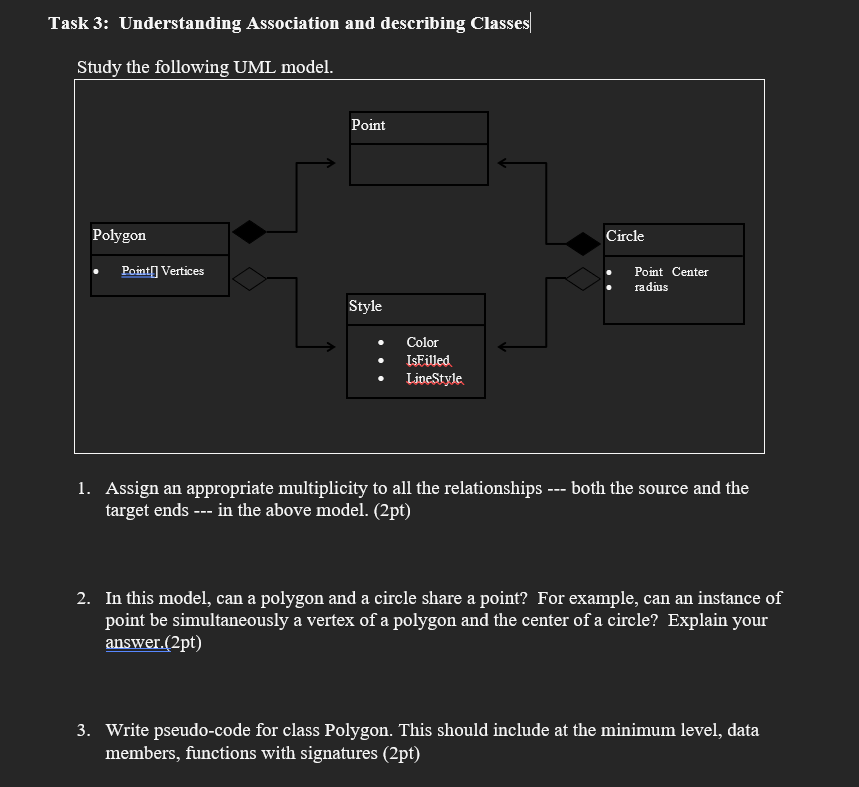

Task 3: Understanding Association and describing Classes| Study the following UML model. 1. Assign an appropriate multiplicity to all the relationships - -o both the source and the target ends - in the above model. (2pt) 2. In this model, can a polygon and a circle share a point? For example, can an instance o. point be simultaneously a vertex of a polygon and the center of a circle? Explain your answer. (2pt) 3. Write pseudo-code for class Polygon. This should include at the minimum level, data members, functions with signatures (2pt)
