1'13. 0=,7 8-12. Figure 8-32 shows another way to produce ring words. After the circuit is cleared, Q=Q2Q1Q0=000 Sinc

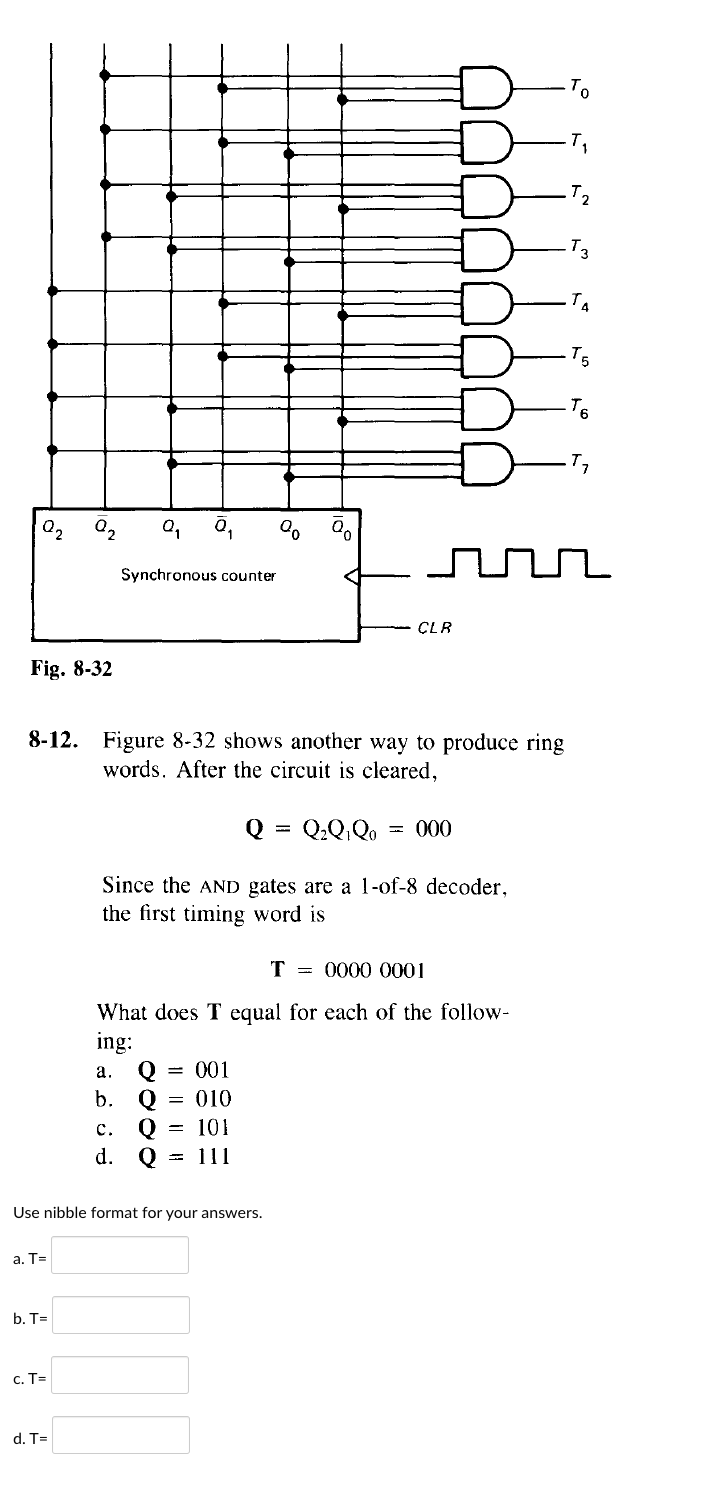

1'13. 0=,7 8-12. Figure 8-32 shows another way to produce ring words. After the circuit is cleared, Q=Q2Q1Q0=000 Since the AND gates are a 1-of- 8 decoder, the first timing word is T=00000001 What does T equal for each of the following: a. Q=001 b. Q=010 c. Q=101 d. Q=111 Use nibble format for your answers.
