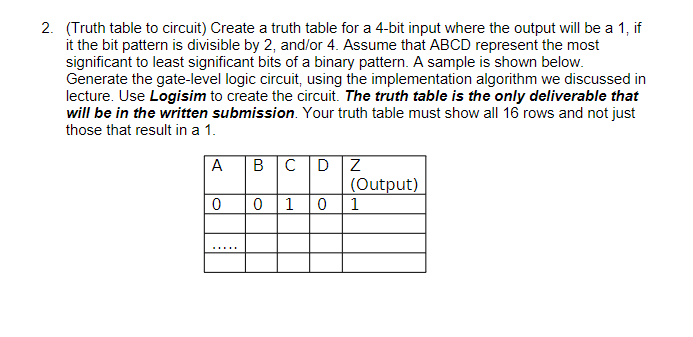

- 2 Truth Table To Circuit Create A Truth Table For A 4 Bit Input Where The Output Will Be A 1 If It The Bit Pattern 1 (20.31 KiB) Viewed 28 times
2. (Truth table to circuit) Create a truth table for a 4-bit input where the output will be a 1 , if it the bit pattern
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2. (Truth table to circuit) Create a truth table for a 4-bit input where the output will be a 1 , if it the bit pattern
2. (Truth table to circuit) Create a truth table for a 4-bit input where the output will be a 1 , if it the bit pattern is divisible by 2 , and/or 4 . Assume that ABCD represent the most significant to least significant bits of a binary pattern. A sample is shown below. Generate the gate-level logic circuit, using the implementation algorithm we discussed in lecture. Use Logisim to create the circuit. The truth table is the only deliverable that will be in the written submission. Your truth table must show all 16 rows and not just those that result in a 1 .
