3.15 If A and B are four-bit unsigned binary numbers, 0111 and 1011 , complete the table obtained when using a two-bit f

Post by answerhappygod »

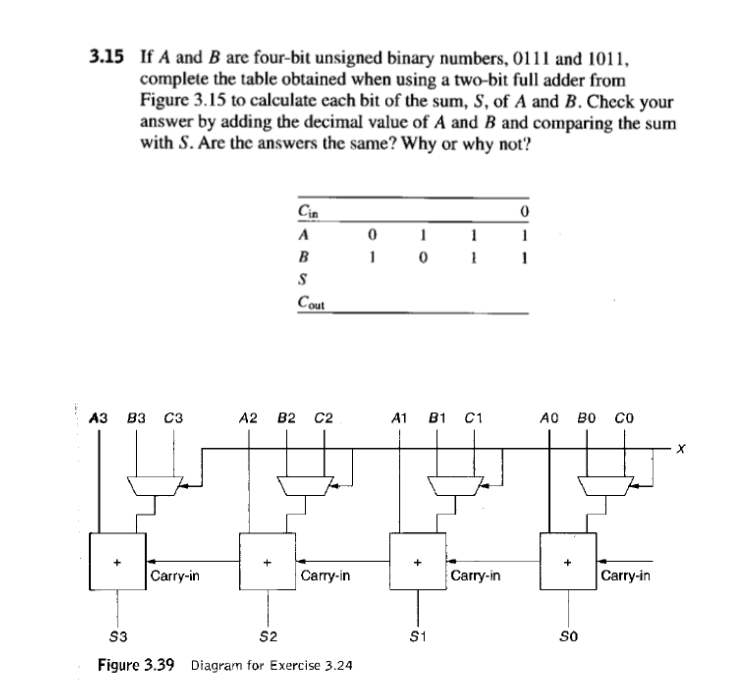

3 15 If A And B Are Four Bit Unsigned Binary Numbers 0111 And 1011 Complete The Table Obtained When Using A Two Bit F 1
3 15 If A And B Are Four Bit Unsigned Binary Numbers 0111 And 1011 Complete The Table Obtained When Using A Two Bit F 1 (82.7 KiB) Viewed 44 times
3.15 If A and B are four-bit unsigned binary numbers, 0111 and 1011 , complete the table obtained when using a two-bit full adder from Figure 3.15 to calculate each bit of the sum, S, of A and B. Check your answer by adding the decimal value of A and B and comparing the sum with S. Are the answers the same? Why or why not?
