Problem 4 Consider the follower has the following motion characteristics: • Rise to h= 40 mm with a cycloidal motion for

[answerhappygod]

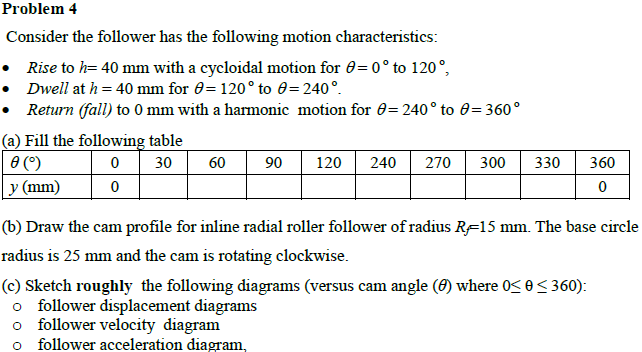

Problem 4 Consider The Follower Has The Following Motion Characteristics Rise To H 40 Mm With A Cycloidal Motion For 1 (39.78 KiB) Viewed 40 times

Problem 4 Consider the follower has the following motion characteristics: • Rise to h= 40 mm with a cycloidal motion for 0=0° to 120°, • Dwell at h = 40 mm for 0= 120° to 0= 240°. • Return (fall) to 0 mm with a harmonic motion for 0= 240° to 0= 360° (a) Fill the following table 00 0 30 60 90 120 240 270 300 y (mm) 0 330 360 0 (6) Draw the cam profile for inline radial roller follower of radius R=15 mm. The base circle radius is 25 mm and the cam is rotating clockwise. c) Sketch roughly the following diagrams (versus cam angle (0) where O<O< 360): o follower displacement diagrams o follower velocity diagram o follower acceleration diagram,
