PROBLEM 3.20 KNOWN: Materials and dimensions of a composite wall separating a combustion gas from a liquid coolant. FIND

[answerhappygod]

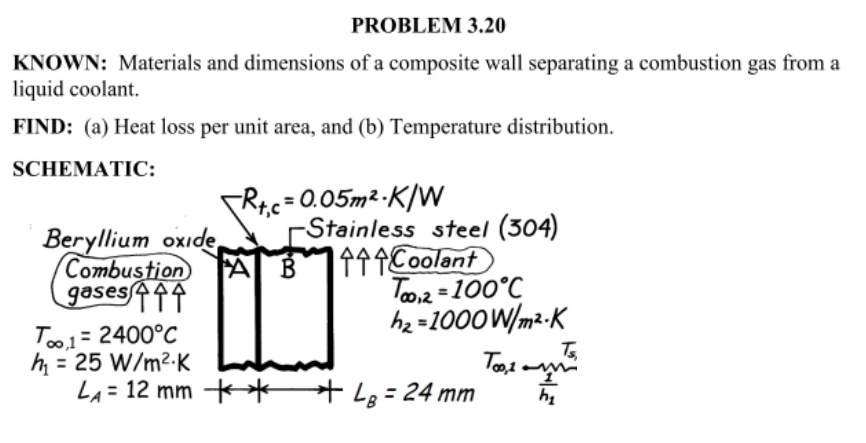

Problem 3 20 Known Materials And Dimensions Of A Composite Wall Separating A Combustion Gas From A Liquid Coolant Find 1 (110.88 KiB) Viewed 44 times

PROBLEM 3.20 KNOWN: Materials and dimensions of a composite wall separating a combustion gas from a liquid coolant. FIND: (a) Heat loss per unit area, and (b) Temperature distribution. SCHEMATIC: FRt,c=0.05m2.K/W Beryllium oxide Stainless steel (304) Combustion B 1999 Coolant gases 999 Too 2 = 100°C T00,1= 2400°C h2 =1000 W/m2.K Ts h = 25 W/m2K Too, LA = 12 mm +*+ 13 = 24 mm m hi we
