2. In 65 MW Steam Power Plant has multiple stage turbine receiving steam at 8680 kPa and 452°C. The first stage operates
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2. In 65 MW Steam Power Plant has multiple stage turbine receiving steam at 8680 kPa and 452°C. The first stage operates

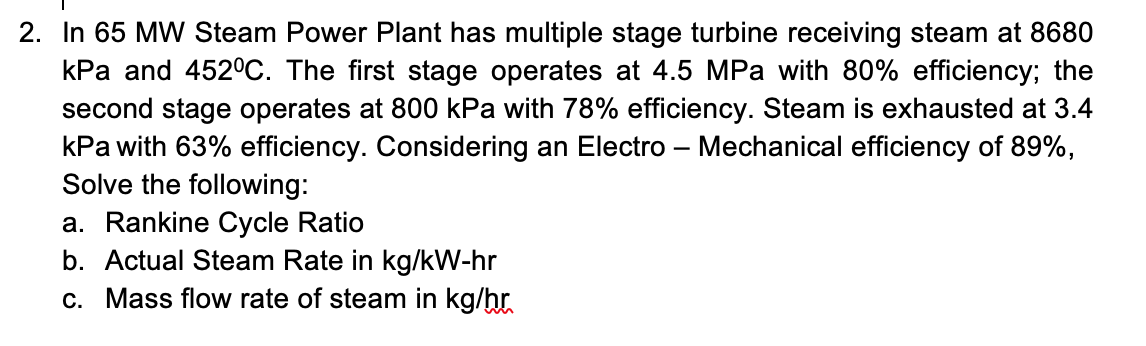

2. In 65 MW Steam Power Plant has multiple stage turbine receiving steam at 8680 kPa and 452°C. The first stage operates at 4.5 MPa with 80% efficiency; the second stage operates at 800 kPa with 78% efficiency. Steam is exhausted at 3.4 kPa with 63% efficiency. Considering an Electro - Mechanical efficiency of 89%, Solve the following: a. Rankine Cycle Ratio b. Actual Steam Rate in kg/kW-hr c. Mass flow rate of steam in kg/hr.
