7 Part A The triangular plate, having a 90° angle at A, supports the load P = 250 lb as shown in (Figure 1). Determine t

[answerhappygod]

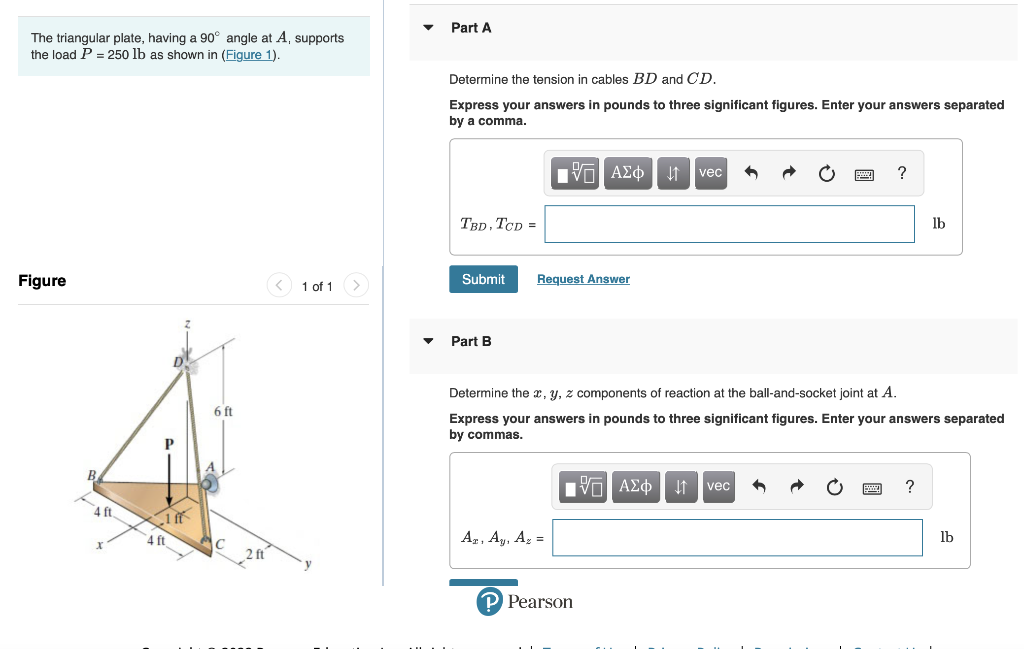

7 Part A The Triangular Plate Having A 90 Angle At A Supports The Load P 250 Lb As Shown In Figure 1 Determine T 1 (113.87 KiB) Viewed 41 times

7 Part A The triangular plate, having a 90° angle at A, supports the load P = 250 lb as shown in (Figure 1). Determine the tension in cables BD and CD. Express your answers in pounds to three significant figures. Enter your answers separated by a comma. VALO f vec ? TBD, TCD = lb Figure Submit Request Answer 1 of 1 Part B 6 ft Determine the x, y, z components of reaction at the ball-and-socket joint at A. Express your answers in pounds to three significant figures. Enter your answers separated by commas. EVO AXO If vec ? 4 ft 51ff f Ag, Ay, A, = lb C P Pearson
