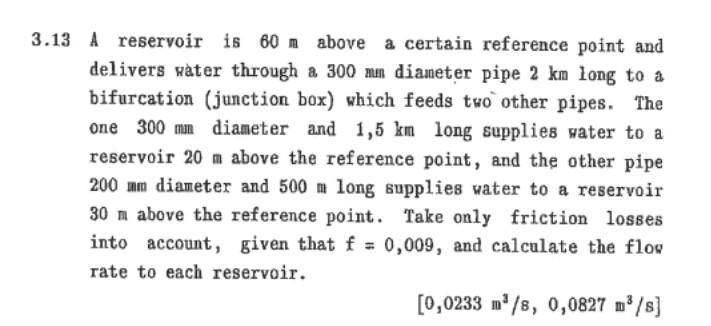

3.13 A reservoir is 60 m above a certain reference point and delivers water through a 300 mm diameter pipe 2 km long to a bifurcation (junction box) which feeds two other pipes. The one 300 mm diameter and 1,5 km long supplies water to a reservoir 20 m above the reference point, and the other pipe 200 mm diameter and 500 m long supplies water to a reservoir 30 m above the reference point. Take only friction losses into account, given that f = 0,009, and calculate the flow rate to each reservoir. [0,0233 m/8, 0,0827 m /s]
