The uniform 20 kg slender bar AC rotates in a vertical plane about the pin at B. The spring AD has a spring constant k =

Post by answerhappygod »

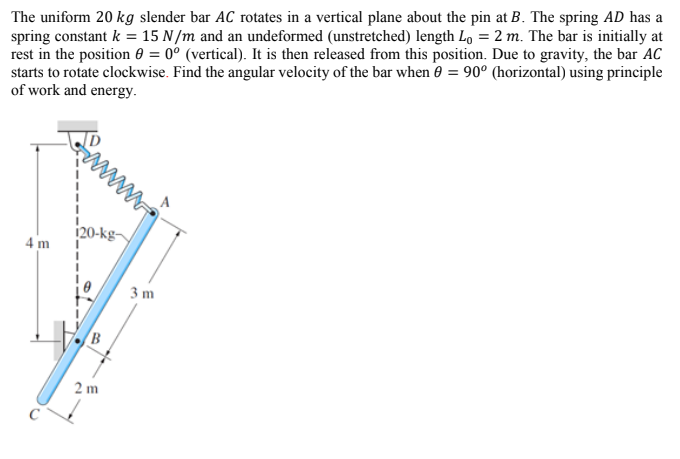

The Uniform 20 Kg Slender Bar Ac Rotates In A Vertical Plane About The Pin At B The Spring Ad Has A Spring Constant K 1
The Uniform 20 Kg Slender Bar Ac Rotates In A Vertical Plane About The Pin At B The Spring Ad Has A Spring Constant K 1 (56.2 KiB) Viewed 20 times
The uniform 20 kg slender bar AC rotates in a vertical plane about the pin at B. The spring AD has a spring constant k = 15 N/m and an undeformed (unstretched) length Lo = 2 m. The bar is initially at rest in the position 6 = 0º (vertical). It is then released from this position. Due to gravity, the bar AC starts to rotate clockwise. Find the angular velocity of the bar when 0 = 90° (horizontal) using principle of work and energy. 120-kg 4 m 3 m (в 2 m
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
