A piston-cylinder device contains 0.15 kg of air initially at 2 MPa and 350°C. The air is first expanded isothermally t

[answerhappygod]

A Piston Cylinder Device Contains 0 15 Kg Of Air Initially At 2 Mpa And 350a C The Air Is First Expanded Isothermally T 1 (122.5 KiB) Viewed 86 times

A Piston Cylinder Device Contains 0 15 Kg Of Air Initially At 2 Mpa And 350a C The Air Is First Expanded Isothermally T 2 (50.92 KiB) Viewed 86 times

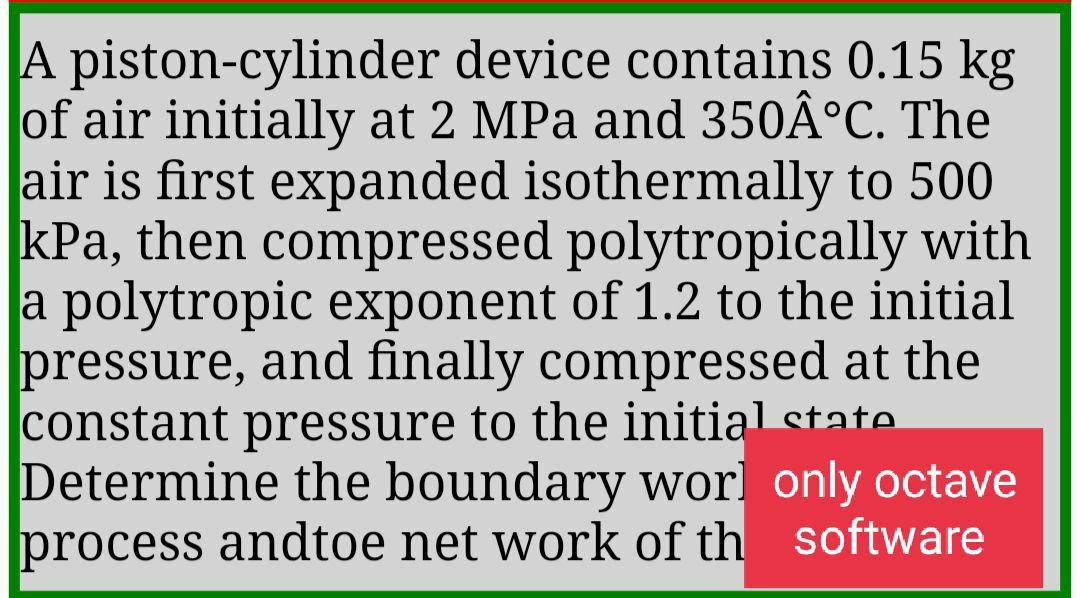

A piston-cylinder device contains 0.15 kg of air initially at 2 MPa and 350°C. The air is first expanded isothermally to 500 kPa, then compressed polytropically with a polytropic exponent of 1.2 to the initial pressure, and finally compressed at the constant pressure to the initial state Determine the boundary wor) only octave process andtoe net work of th software
Water is the working fluid in a Rankine cycle. Steam exits the steam generator at 1500 lbf/in.2 and 1100°F. Due to heat transfer and frictional effects in the line connecting the steam generator and turbine, the pressure and temperature at the turbine inlet are reduced to 1400 lbf/in. and 1000°F, respectively. Both the turbine and pump have isentropic efficiencies of 95%. Pressure at the condenser inlet is 2 lbf/ in.2, but due to frictional effects the condensate exits the condenser at a pressure of 1.5 lbf/in.? and a temperature of 110°F. The condensate is pumped to 1600 lbf/in.2 before entering the steam generator. The net power output of the cycle is 1 x 108 Btu/h. Cooling water experiences a temperature increase from 60°F to 76°F, with negligible pressure drop, as it passes through the condenser. ONLY EES SOFTWARE Determine for the cycle: (a) the mass flow rate of steam, in lb/h. (b) the rate of heat transfer, in Btu/h, to the working fluid passing through the steam generator. (c) the percent thermal efficiency. (d) the mass flow rate of cooling water, in lb/h.
