Determine the bending stress at each of points A and B for the section shown below under the bending moments indicated o

Post by answerhappygod »

Determine The Bending Stress At Each Of Points A And B For The Section Shown Below Under The Bending Moments Indicated O 1
Determine The Bending Stress At Each Of Points A And B For The Section Shown Below Under The Bending Moments Indicated O 1 (203.46 KiB) Viewed 31 times
Explanation as well if possible

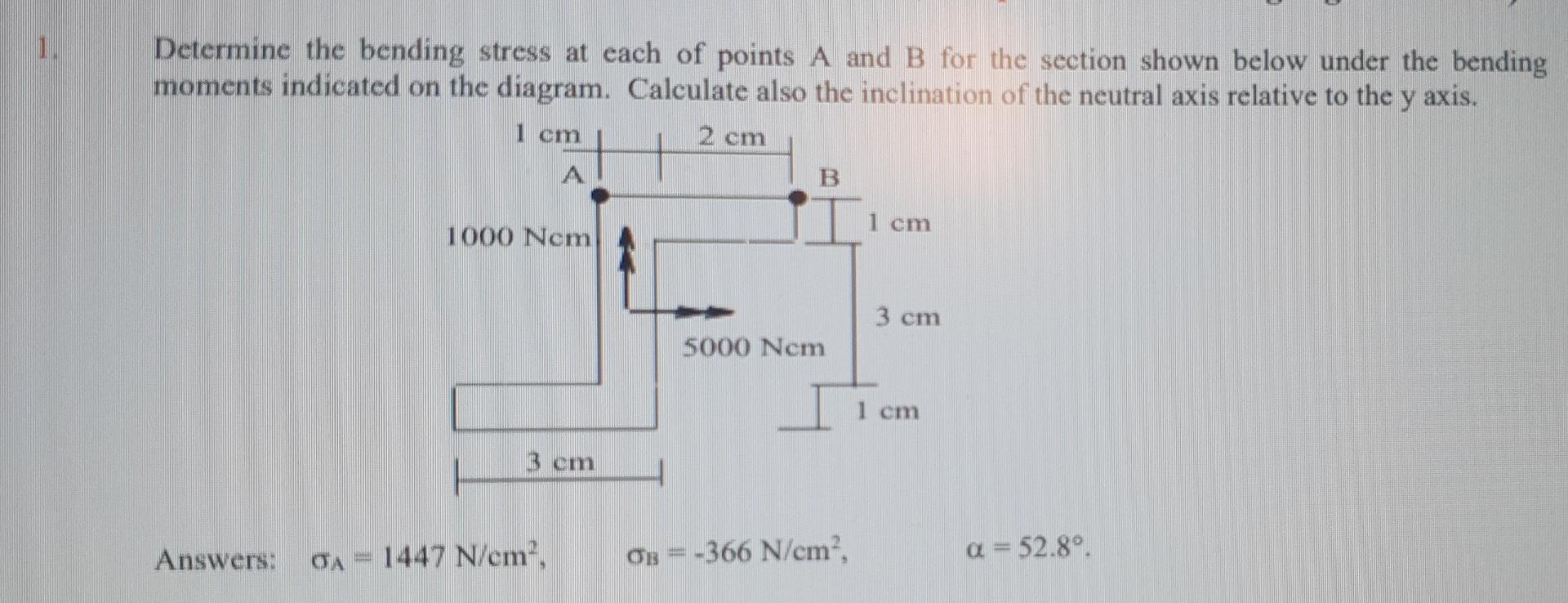

Determine the bending stress at each of points A and B for the section shown below under the bending moments indicated on the diagram. Calculate also the inclination of the neutral axis relative to the y axis. 1 cm 2 cm A B 1 cm 1000 Nem 3 cm 5000 Nom 1 cm 3 cm Answers: CA = 1447 N/cm, OB = -366 N/cm a = 52.8°
