The figure shows a quick return mechanism. In this mechanism the rod OA rotates with a constant angular velocity of 16 r

Post by answerhappygod »

The Figure Shows A Quick Return Mechanism In This Mechanism The Rod Oa Rotates With A Constant Angular Velocity Of 16 R 1
The Figure Shows A Quick Return Mechanism In This Mechanism The Rod Oa Rotates With A Constant Angular Velocity Of 16 R 1 (62.04 KiB) Viewed 41 times

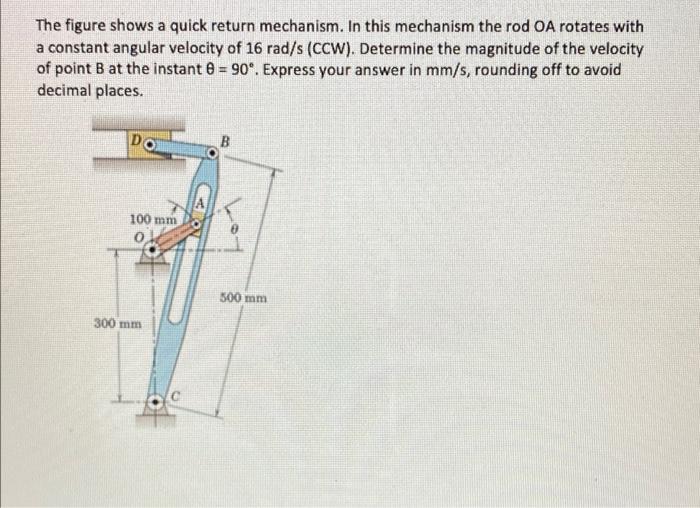

The figure shows a quick return mechanism. In this mechanism the rod OA rotates with a constant angular velocity of 16 rad/s (CCW). Determine the magnitude of the velocity of point B at the instant 8 = 90“. Express your answer in mm/s, rounding off to avoid decimal places. DO 8 A 100 mm 500 mm 300 mm
