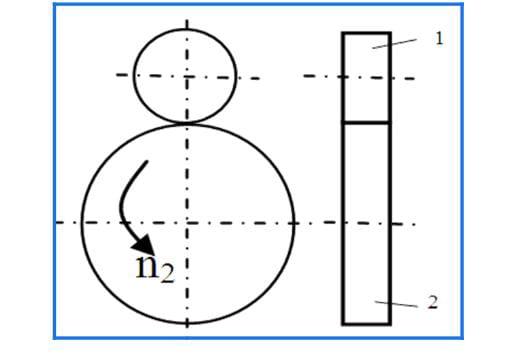

A pair of helical cylindrical gears is known to drive. 1 is the
driving gear. The direction of the gear 2 helix is left-handed. The
rotation direction is shown in the figure. Mark it on the
graph:
(1) 1, 2 gears’ helical line direction
(2)The direction of the tangent force Ft1、Ft2. The direction of the
axial force Fa1、Fa2. he direction of the radial force Fr1、Fr2
A Pair Of Helical Cylindrical Gears Is Known To Drive 1 Is The Driving Gear The Direction Of The Gear 2 Helix Is Left 1 (16.58 KiB) Viewed 43 times
1 ! 2
