Between the two walls separated by height h, a non-viscous(ρ),
incompressible fluid flows at a speed of V∞ with a magnitude of
static pressure p∞.
At this time, if there is an Source flow with a strength of q per
unit length in the middle of the two walls, the flow flows as it
splits to both sides in the middle between the walls.
(a) Find the half body thickness b.
(b) Use the momentum equation to find the force acting on the
half body surface as a function of ρ,V∞, q, and h.
(c)Answer what the result would be if h became infinitely.

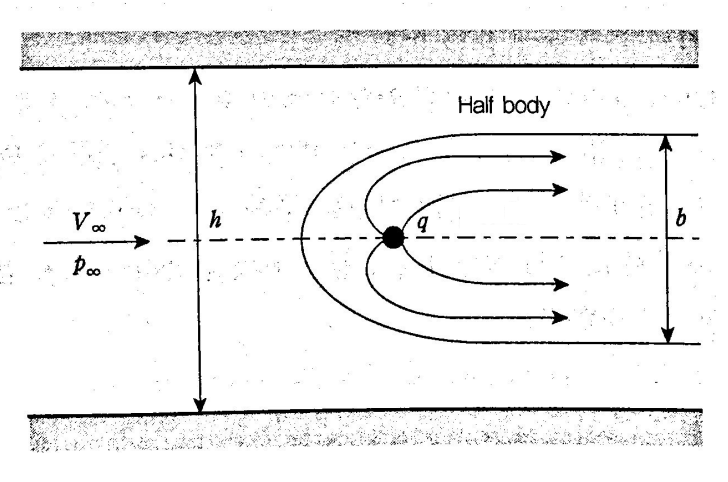

1 (119.38 KiB) Viewed 44 times
Half body V. h 9 b Poo
