The mechanism is released from rest with 8 = 180°, where the uncompressed spring of stiffness k=900 N/m is just touching

Post by answerhappygod »

The Mechanism Is Released From Rest With 8 180 Where The Uncompressed Spring Of Stiffness K 900 N M Is Just Touching 1
The Mechanism Is Released From Rest With 8 180 Where The Uncompressed Spring Of Stiffness K 900 N M Is Just Touching 1 (33.37 KiB) Viewed 44 times

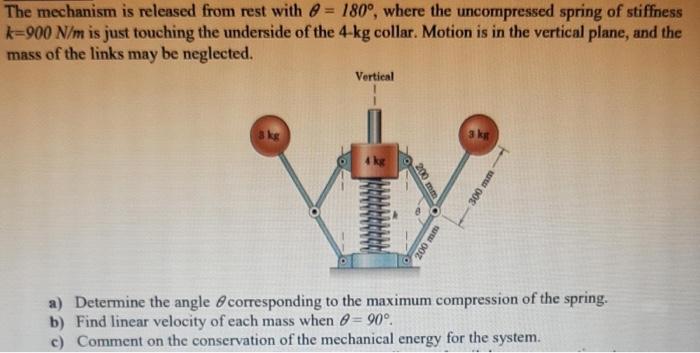

The mechanism is released from rest with 8 = 180°, where the uncompressed spring of stiffness k=900 N/m is just touching the underside of the 4-kg collar. Motion is in the vertical plane, and the mass of the links may be neglected. Vertical 3 kg 3 200 mm 300 mm 200 mm a) Determine the angle corresponding to the maximum compression of the spring. b) Find linear velocity of each mass when = 90°. c) Comment on the conservation of the mechanical energy for the system.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
