Solve the following problems (a) manually, (b) by using the MATLAB (after some modifications of the programs given) and

Post by answerhappygod »

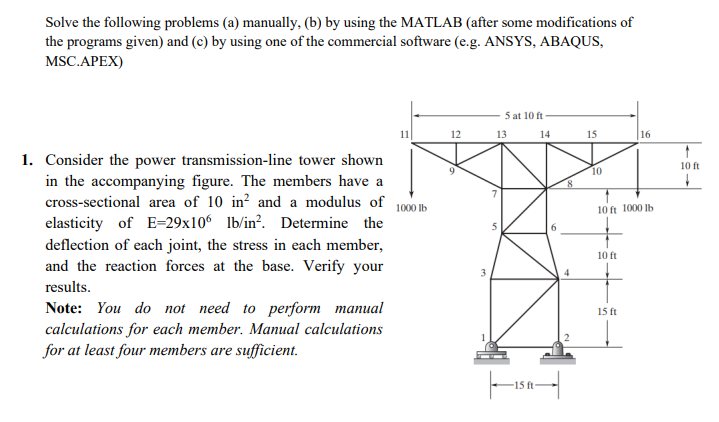

Solve The Following Problems A Manually B By Using The Matlab After Some Modifications Of The Programs Given And 1
Solve The Following Problems A Manually B By Using The Matlab After Some Modifications Of The Programs Given And 1 (90.09 KiB) Viewed 40 times
using one of the commercial software(ANSYS, ABAQUS, MSC.
APEX)
Solve the following problems (a) manually, (b) by using the MATLAB (after some modifications of the programs given) and (c) by using one of the commercial software (e.g. ANSYS, ABAQUS, MSC.APEX) 5 at 10 11 11 12 13 14 15 16 1 10 ft + 10 100011 10 ft 1000 lb 5 1. Consider the power transmission-line tower shown in the accompanying figure. The members have a cross-sectional area of 10 in? and a modulus of elasticity of E=29x106 lb/in? Determine the deflection of each joint, the stress in each member, and the reaction forces at the base. Verify your results. Note: You do not need to perform manual calculations for each member. Manual calculations for at least four members are sufficient. 10 ft 15 ft |--15 ft
