Show clearly the FBD's and steps on how you arrive at the final answers Question 1: 2200 700 500 1400 700 700 23 R350 R3

[answerhappygod]

Show Clearly The Fbd S And Steps On How You Arrive At The Final Answers Question 1 2200 700 500 1400 700 700 23 R350 R3 1 (51.34 KiB) Viewed 25 times

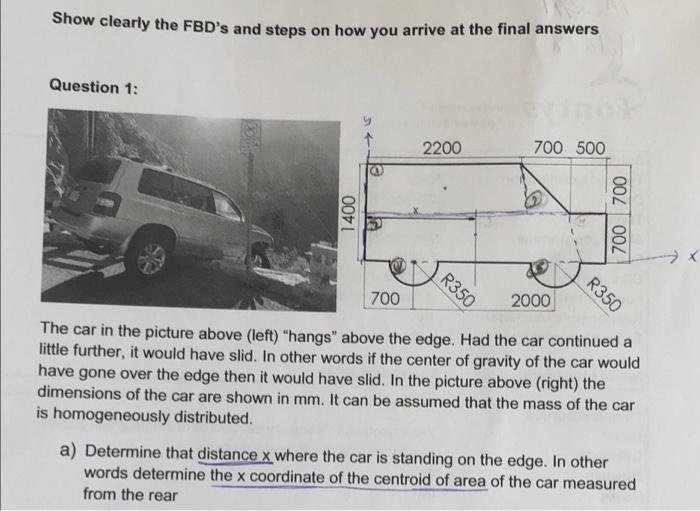

Show clearly the FBD's and steps on how you arrive at the final answers Question 1: 2200 700 500 1400 700 700 23 R350 R350 700 2000 The car in the picture above (left) "hangs" above the edge. Had the car continued a little further, it would have slid. In other words if the center of gravity of the car would have gone over the edge then it would have slid. In the picture above (right) the dimensions of the car are shown in mm. It can be assumed that the mass of the car is homogeneously distributed. a) Determine that distance x where the car is standing on the edge. In other words determine the x coordinate of the centroid of area of the car measured from the rear
