Consider a point in a structural member that is subjected to
plane stress. Normal and shear stress magnitudes acting on
horizontal and vertical planes at the point are Sx = 30 MPa, Sy =
56 MPa, and Sxy = 26 MPa. (a) Draw Mohr’s circle for this state of
stress. (b) Determine the principal stresses and the maximum
in-plane shear stress acting at the point. (c) Show these stresses
on an appropriate sketch (e.g., see Fig. 12.15 or Fig. 12.16). (d)
Determine the absolute maximum shear stress at the point.

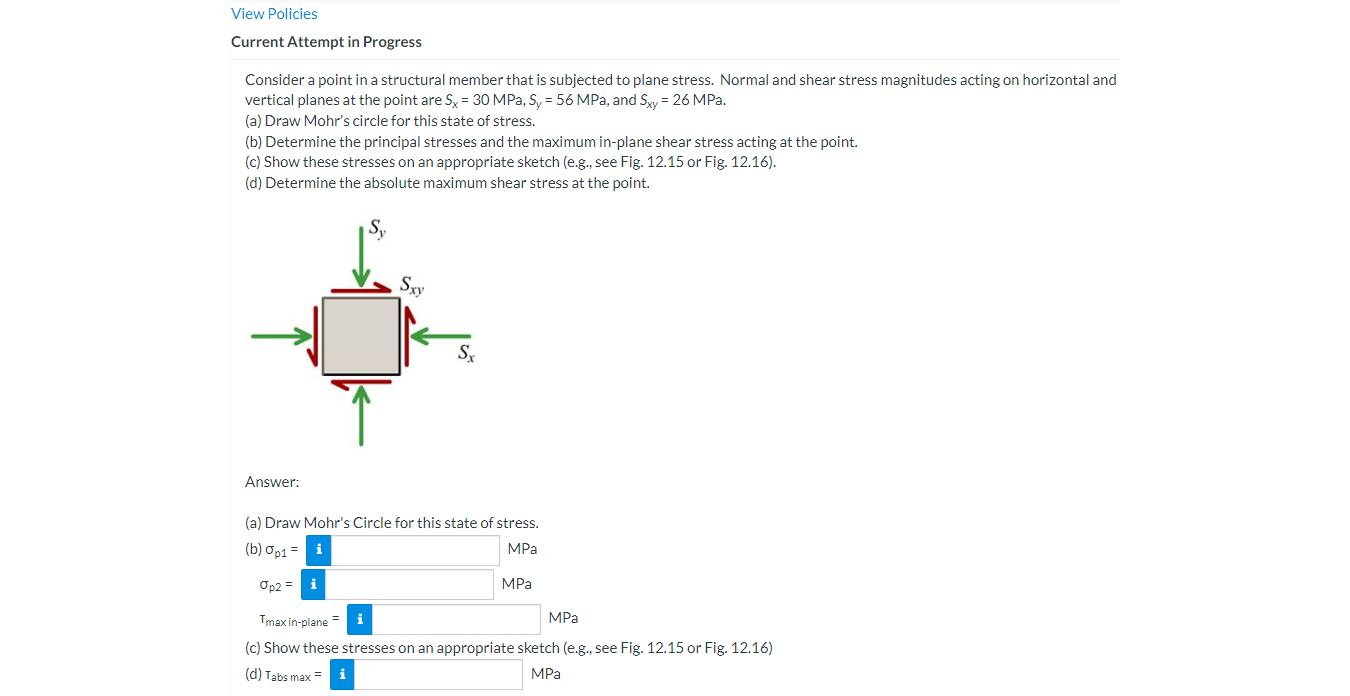

Consider A Point In A Structural Member That Is Subjected To Plane Stress Normal And Shear Stress Magnitudes Acting On 1 (54.19 KiB) Viewed 37 times
View Policies Current Attempt in Progress Consider a point in a structural member that is subjected to plane stress. Normal and shear stress magnitudes acting on horizontal and vertical planes at the point are Sx = 30 MPa, Sy = 56 MPa, and Sxy = 26 MPa. (a) Draw Mohr's circle for this state of stress. (b) Determine the principal stresses and the maximum in-plane shear stress acting at the point. (c) Show these stresses on an appropriate sketch (e.g., see Fig. 12.15 or Fig. 12.16). (d) Determine the absolute maximum shear stress at the point. S Answer: (a) Draw Mohr's Circle for this state of stress. (b) Op1 = i MPa Op2 = i MPa Tmax in-plane MPa (c) Show these stresses on an appropriate sketch (e.g., see Fig. 12.15 or Fig. 12.16) (d) Tabs max = MPa
