w th B! h N.A. ΑΙ th k tw tw KN, The figure (not drawn to scale) shows the cross-section of a hollow rectangular beam su
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
w th B! h N.A. ΑΙ th k tw tw KN, The figure (not drawn to scale) shows the cross-section of a hollow rectangular beam su

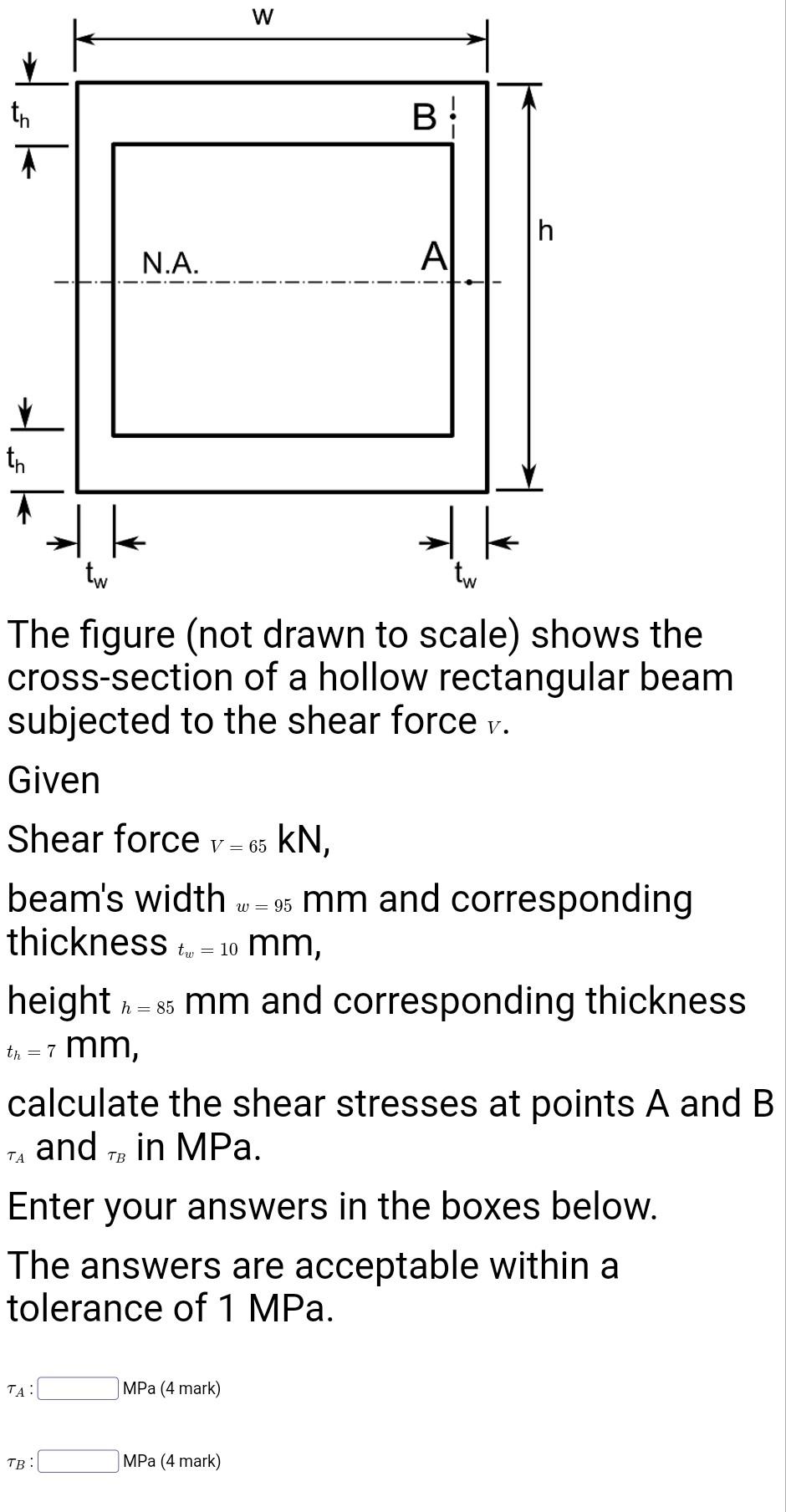

w th B! h N.A. ΑΙ th k tw tw KN, The figure (not drawn to scale) shows the cross-section of a hollow rectangular beam subjected to the shear force v. Given Shear force v = 65 beam's width = 95 mm and corresponding w thickness tv = 10 mm, height n = 85 mm and corresponding thickness th=7 mm, calculate the shear stresses at points A and B TA and to in MPa. Enter your answers in the boxes below. The answers are acceptable within a tolerance of 1 MPa. - ΤΑ TB TA: MPa (4 mark) TB: MPa (4 mark)
