o A structural member, made of steel (E=210 GPa, v=0.32), is subjected to a state of plane strain in which (Ezz = {zx =

[answerhappygod]

O A Structural Member Made Of Steel E 210 Gpa V 0 32 Is Subjected To A State Of Plane Strain In Which Ezz Zx 1 (31.09 KiB) Viewed 33 times

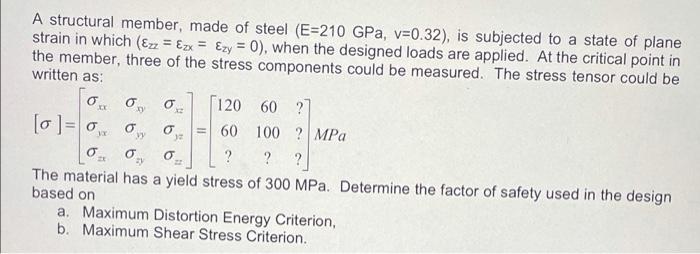

o A structural member, made of steel (E=210 GPa, v=0.32), is subjected to a state of plane strain in which (Ezz = {zx = Ezy = 0), when the designed loads are applied. At the critical point in the member, three of the stress components could be measured. The stress tensor could be written as: O O Ox [120 60 ? [0]= 0 60 100 ? MPa 0. 0 ? ? ? The material has a yield stress of 300 MPa. Determine the factor of safety used in the design based on a. Maximum Distortion Energy Criterion, b. Maximum Shear Stress Criterion. 1x w o 12 6
