A steel rod with modulus of elasticity, E = 210 GPa is fixed to the wall at one end and applied 500 kN load, as shown in

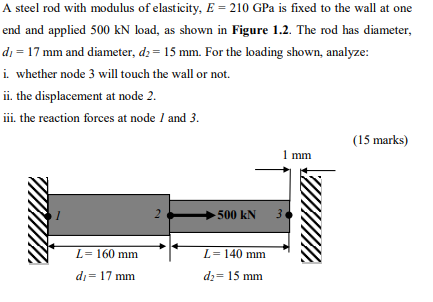

A steel rod with modulus of elasticity, E = 210 GPa is fixed to the wall at one end and applied 500 kN load, as shown in Figure 1.2. The rod has diameter, di = 17 mm and diameter, dz= 15 mm. For the loading shown, analyze: i. whether node 3 will touch the wall or not. ii. the displacement at node 2. iii. the reaction forces at node 1 and 3. (15 marks) 1 mm 2 500 KN 3 L=160 mm L=140 mm dz= 15 mm d = 17 mm
