A design engineer required to carry out finite element analysis for wheelbarrow frame using a commercial software. The w

[answerhappygod]

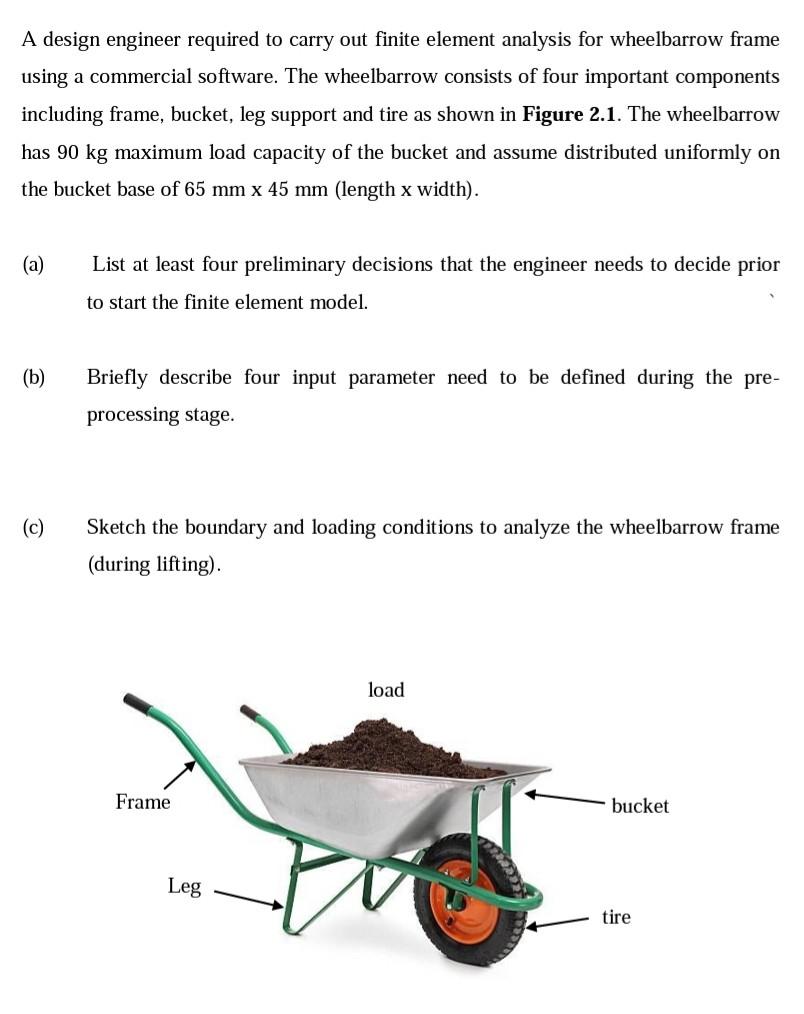

A Design Engineer Required To Carry Out Finite Element Analysis For Wheelbarrow Frame Using A Commercial Software The W 1 (78.52 KiB) Viewed 44 times

A design engineer required to carry out finite element analysis for wheelbarrow frame using a commercial software. The wheelbarrow consists of four important components including frame, bucket, leg support and tire as shown in Figure 2.1. The wheelbarrow has 90 kg maximum load capacity of the bucket and assume distributed uniformly on the bucket base of 65 mm x 45 mm (length x width). (a) List at least four preliminary decisions that the engineer needs to decide prior to start the finite element model. (b) Briefly describe four input parameter need to be defined during the pre- processing stage. (c) Sketch the boundary and loading conditions to analyze the wheelbarrow frame (during lifting). load Frame bucket Leg tire
