4.4-3 Signals fi(t) = 10*rect (10*t) and f2(t) = f(t) are applied at the inputs of the ideal lowpass filters Hi(w) = rec

[answerhappygod]

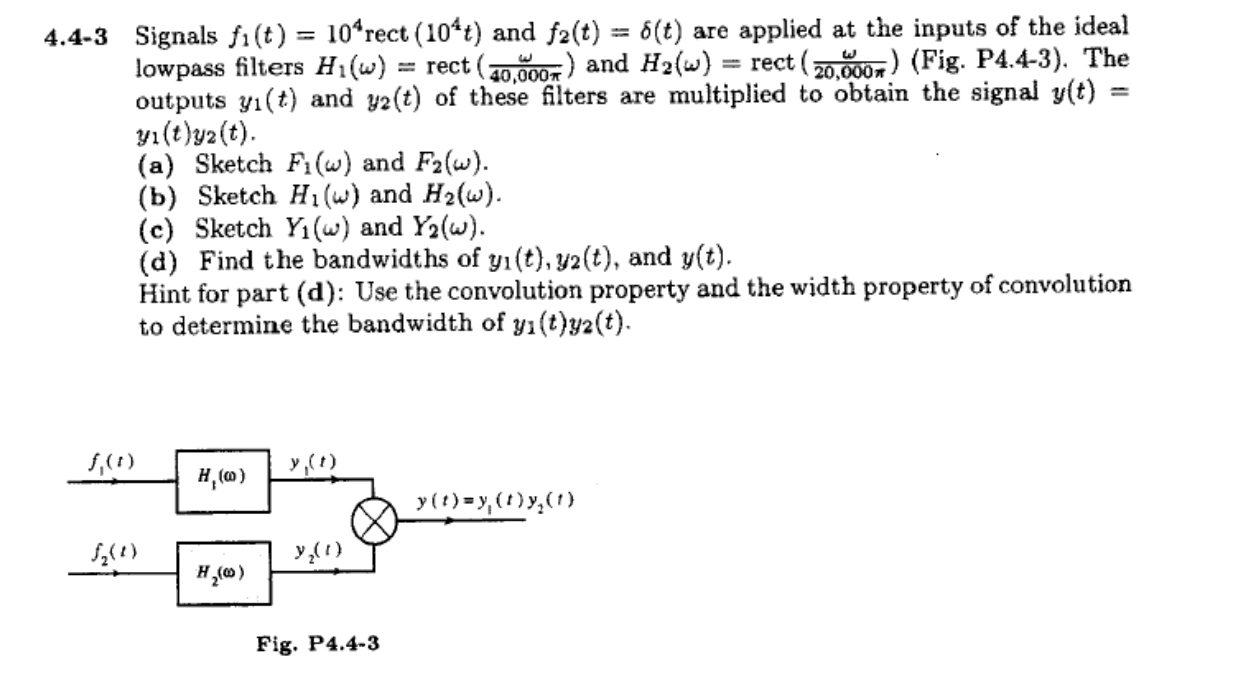

4 4 3 Signals Fi T 10 Rect 10 T And F2 T F T Are Applied At The Inputs Of The Ideal Lowpass Filters Hi W Rec 1 (160.71 KiB) Viewed 30 times
