7. [15 points] RC CIRCUITS - Consider the circuit below. a. What is the voltage at the negative terminal of the op-amp,
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
7. [15 points] RC CIRCUITS - Consider the circuit below. a. What is the voltage at the negative terminal of the op-amp,

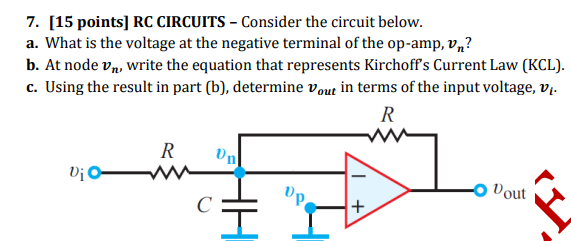

7. [15 points] RC CIRCUITS - Consider the circuit below. a. What is the voltage at the negative terminal of the op-amp, vn? b. At node Vr, write the equation that represents Kirchoff's Current Law (KCL). c. Using the result in part (b), determine Vout in terms of the input voltage, Vi. R R Dn Vio Vout С +
