Would you be able to help me with this question please?
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Would you be able to help me with this question please?
Would you be able to help me with this question please?

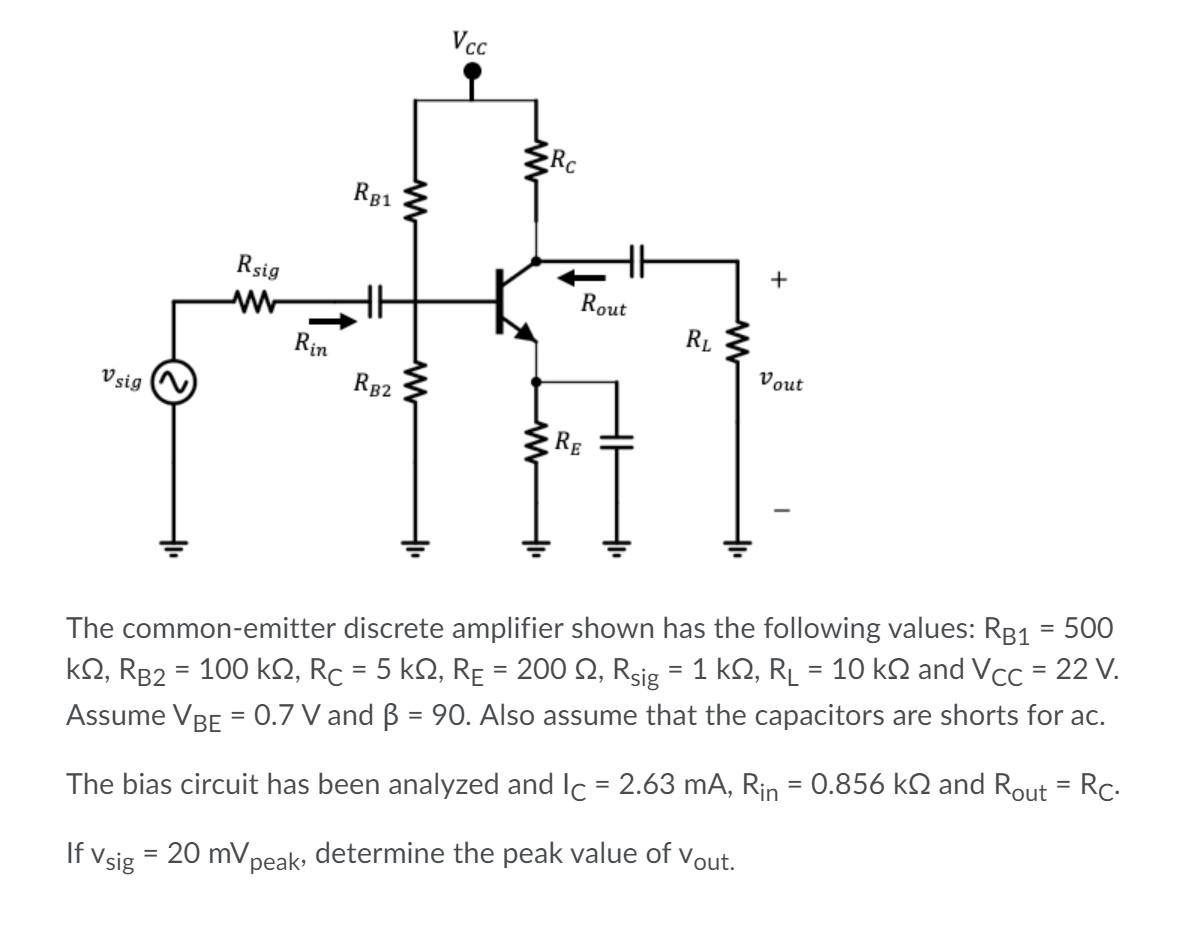

Vcc •Rc RB1 Rsig HE + Rout Rin RL Vsig RB2 Vout RE = = = The common-emitter discrete amplifier shown has the following values: RB1 = 500 k12, RB2 = 100 ks2, Rc = 5 ks2, Re = 200 12, Rsig = 1 ks2, RL = 10 k12 and Vcc = 22 V. Assume VBE = 0.7 V and B = 90. Also assume that the capacitors are shorts for ac. = The bias circuit has been analyzed and Ic = 2.63 mA, Rin = 0.856 k12 and Rout = Rc. = = = If Vsig = 20 mV peak, determine the peak value of Vout.
Vcc •Rc RB1 Rsig HE + Rout Rin RL Vsig RB2 Vout RE = = = The common-emitter discrete amplifier shown has the following values: RB1 = 500 k12, RB2 = 100 ks2, Rc = 5 ks2, Re = 200 12, Rsig = 1 ks2, RL = 10 k12 and Vcc = 22 V. Assume VBE = 0.7 V and B = 90. Also assume that the capacitors are shorts for ac. = The bias circuit has been analyzed and Ic = 2.63 mA, Rin = 0.856 k12 and Rout = Rc. = = = If Vsig = 20 mV peak, determine the peak value of Vout.
