- Q3 Determine V For The Network Of Fig 3 And Fig 4 Using A Silicon Diode With Vy Ov R 16 V 0 4v 16 Figure 3 1 (35.49 KiB) Viewed 35 times

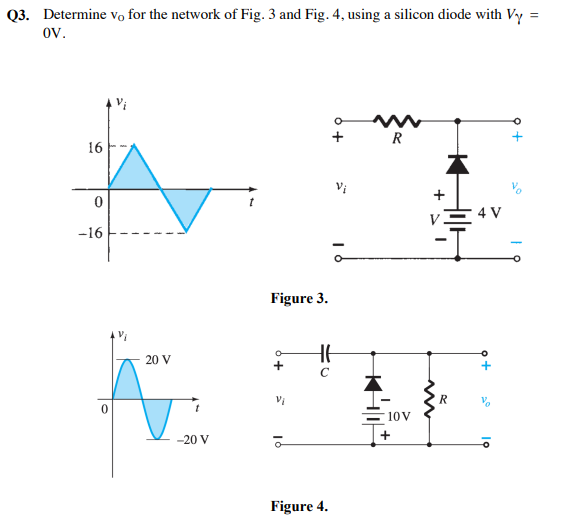

= Q3. Determine v, for the network of Fig. 3 and Fig. 4, using a silicon diode with Vy = ov. + R 16 V 0 4V -16 Figure 3.
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
= Q3. Determine v, for the network of Fig. 3 and Fig. 4, using a silicon diode with Vy = ov. + R 16 V 0 4V -16 Figure 3.
= Q3. Determine v, for the network of Fig. 3 and Fig. 4, using a silicon diode with Vy = ov. + R 16 V 0 4V -16 Figure 3. 20 V HE + o + 0 Vi R 0 4 10V -20 V + Figure 4.
