Given the below open-loop transfer function of a unity negative feedback system, K G(s) = (s + 4)(s + 6(s2 + 4s + 8) ,K>

Post by answerhappygod »

Given The Below Open Loop Transfer Function Of A Unity Negative Feedback System K G S S 4 S 6 S2 4s 8 K 1
Given The Below Open Loop Transfer Function Of A Unity Negative Feedback System K G S S 4 S 6 S2 4s 8 K 1 (218.41 KiB) Viewed 18 times

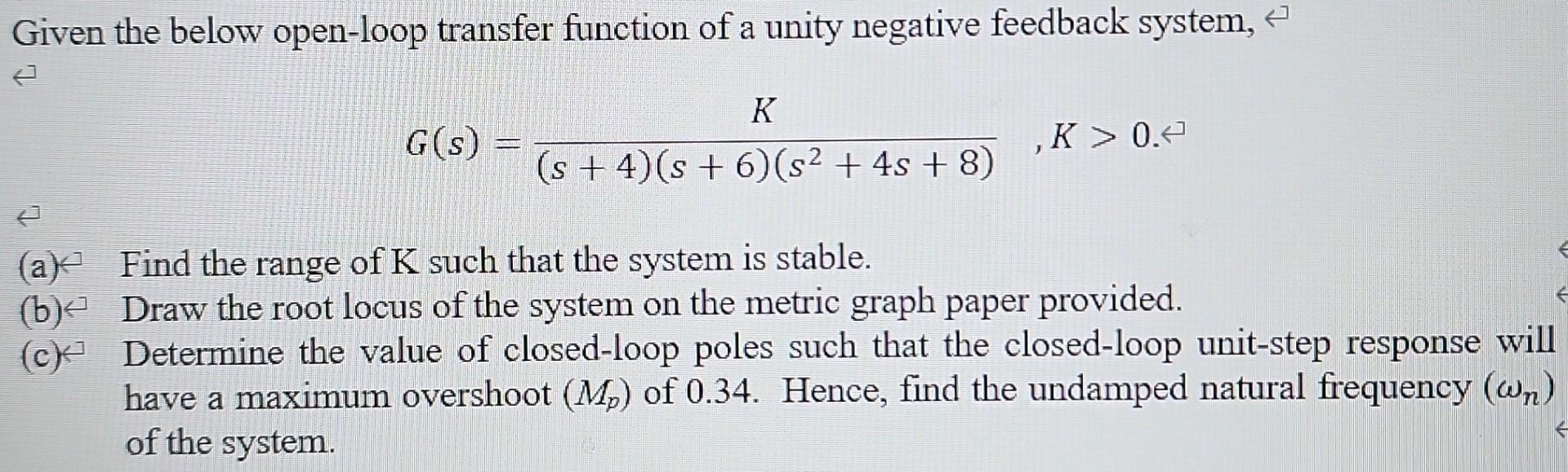

Given the below open-loop transfer function of a unity negative feedback system, K G(s) = (s + 4)(s + 6(s2 + 4s + 8) ,K>0. mm € (a) Find the range of K such that the system is stable. (b) Draw the root locus of the system on the metric graph paper provided. ce Determine the value of closed-loop poles such that the closed-loop unit-step response will have a maximum overshoot (Mp) of 0.34. Hence, find the undamped natural frequency (wn) of the system. a
