A sequential circuit contains a register of four flip flops. Initially a binary number N (0000 S N S 1100) is stored in
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
A sequential circuit contains a register of four flip flops. Initially a binary number N (0000 S N S 1100) is stored in

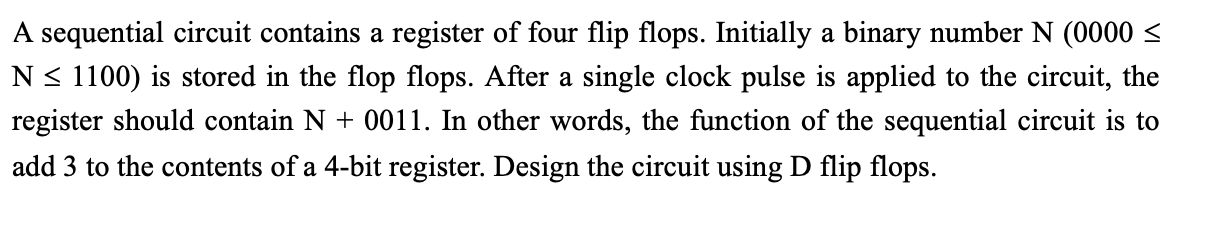

A sequential circuit contains a register of four flip flops. Initially a binary number N (0000 S N S 1100) is stored in the flop flops. After a single clock pulse is applied to the circuit, the register should contain N + 0011. In other words, the function of the sequential circuit is to add 3 to the contents of a 4-bit register. Design the circuit using D flip flops.
