Prelab: Derive the state-space representation, where the output is the displacement x2(t), and transfer function X2(S)/F
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Prelab: Derive the state-space representation, where the output is the displacement x2(t), and transfer function X2(S)/F

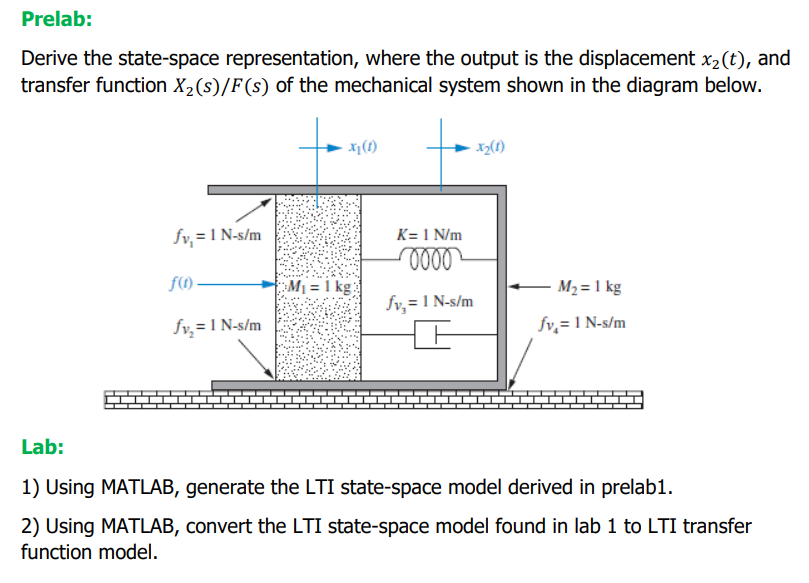

Prelab: Derive the state-space representation, where the output is the displacement x2(t), and transfer function X2(S)/F(s) of the mechanical system shown in the diagram below. 27() x20) fv, = 1 N-s/m K=1 N/m 0000 fo OM = 1 kg: M2 = 1 kg fv = 1 N-s/m fv = 1 N-s/m E fv = 1 N-s/m Lab: 1) Using MATLAB, generate the LTI state-space model derived in prelabi. 2) Using MATLAB, convert the LTI state-space model found in lab 1 to LTI transfer function model.
