Derive the transfer function for the network in figure 1 below. Using MATLAB/ OCTAVE, plot |G(s)|| versus frequency in H
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Derive the transfer function for the network in figure 1 below. Using MATLAB/ OCTAVE, plot |G(s)|| versus frequency in H

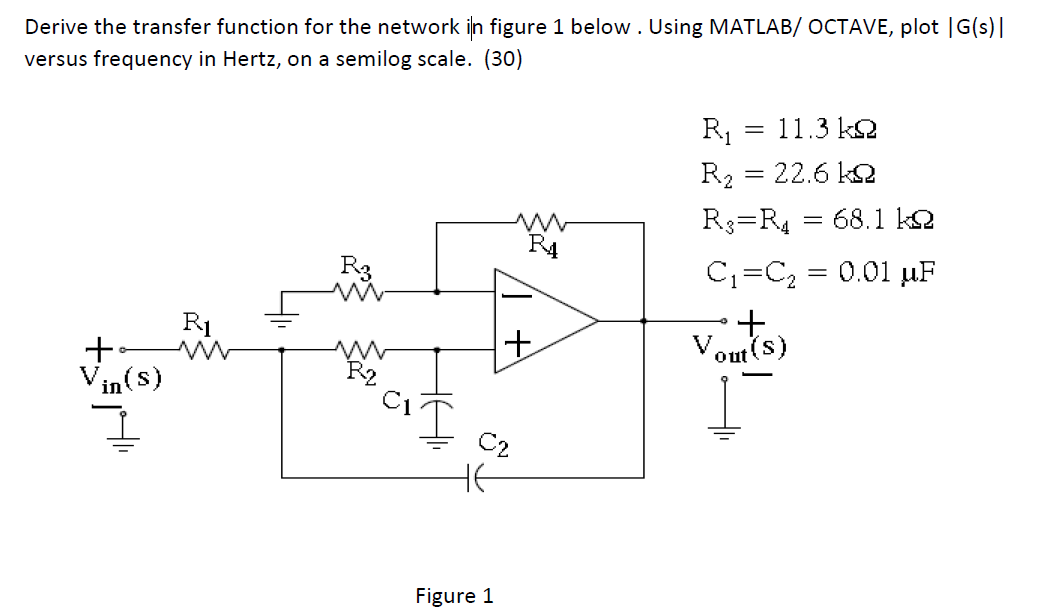

Derive the transfer function for the network in figure 1 below. Using MATLAB/ OCTAVE, plot |G(s)|| versus frequency in Hertz, on a semilog scale. (30) = = RI 11.3 k2 R2 = 22.6 k2 R3=R4 = 68.1 kg C1=C2 = 0.01 uF W R4 R3 = | R1 W + +。 M + Vout(s) Vin(S) R2 C2 HE Figure 1
