5.1 Using the data recorded from the simulated frequency response of the under-damped amplifier, draw a bode a plot. Rea

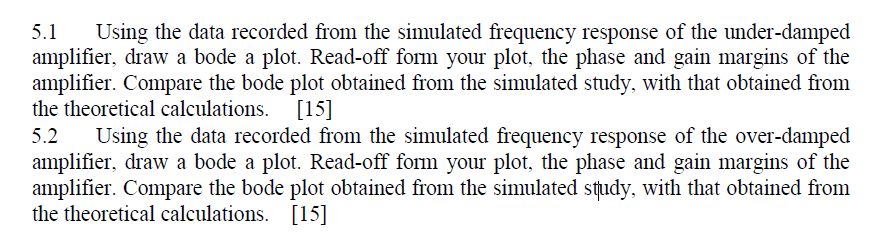

5.1 Using the data recorded from the simulated frequency response of the under-damped amplifier, draw a bode a plot. Read-off form your plot, the phase and gain margins of the amplifier. Compare the bode plot obtained from the simulated study, with that obtained from the theoretical calculations. [15] 5.2 Using the data recorded from the simulated frequency response of the over-damped amplifier, draw a bode a plot. Read-off form your plot, the phase and gain margins of the amplifier. Compare the bode plot obtained from the simulated study, with that obtained from the theoretical calculations. [15]
